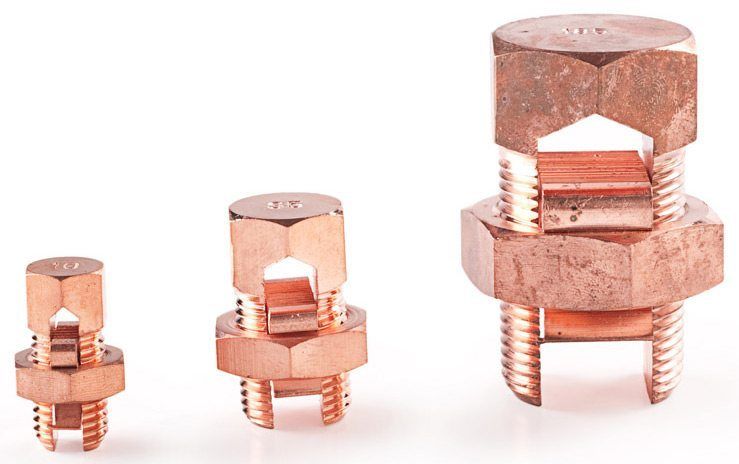

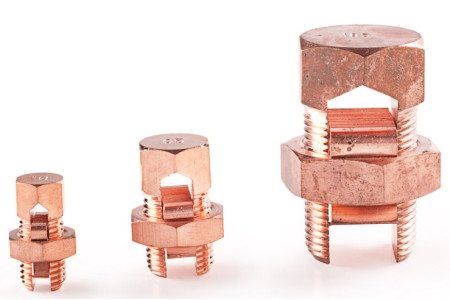

Split-Bolt Connector with Hexagonal Head According to DIN Standard

Group 230 Category

Acording to British Standard.

Share on facebook
Share on twitter
Share on linkedin
Share on print
Share on whatsapp

Description

For Copper Conductors.

Material

Body and Nut:

Brass (CuZn).

Surface:

Copper-plated.

Cat.
No.
Conductor
Cross-Section
sq. mm
Conductor
Diamter Ø mm
Dimensions mm Weight 100 Pcs.
Kg.
min.max.ACD
1013210066 2.70 4.10 19 11.3 13.34 1.35
10132101010
101321016 16 3.80 5.60 24 13.34 18.00 2.75
101321025 25 4.30 6.60 26 15.24 20.83 3.90
101321035 35 5.30 8.12 31 18.00 23.30 5.70
101321050 50 6.60 10.16 38 20.83 27.90 7.20
101321070 70 7.30 11.17 41 23.30 30.40 11.60
101321095 95 8.30 13.46 47 30.50 37.40 21.90
101321120 120 10.50 16.10 54 30.50 37.40 23.00
101321150150
101321185185
101321240240
