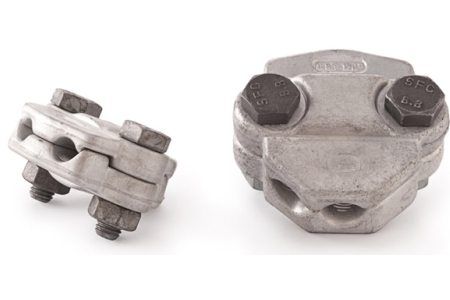

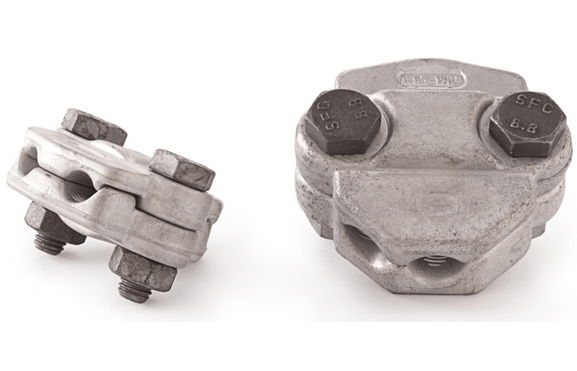

Al Dead-End Clamp According to DIN Standard

Group 206 Category

DIN 48201, DIN 48204

Share on facebook
Share on twitter
Share on linkedin
Share on print
Share on whatsapp

Description

For aluminium and aluminium alloy conductors according to DIN 48201 & ACSR conductors according to DIN 48204

Material

Body:

Corrosion resistant high strength aluminium alloy (AlMgSi1/Al6082).

*Bolts:

Steel, 8.8,DIN 933 hot-dip galvanised

*Nuts:

Steel, 8, DIN 934 hot-dip galvanised

* Steel A2, available, according to order
Minimum Torque Moments:
M8 : 23Nm
M10 : 46Nm
M12 : 80Nm

Cat.
No.
Conductor Cross-Section
sq. mm
Conducotr
Diameter
Ømm
Dimension mm.BoltsWeight
100 Pcs.
Kg.
ALACSRLBD
101330696 25-35 25/4-35/6 6.3-8.149.048.031.0 2xM8x30 10.9
101330697 50-70 50/8-70/12 9.0-11.7 64.0 60.0 42 2xM10x35 20.4
101330698 95-120 95/15 12.5-13.6 78.570.0 51.5 2xM12x45 37.8

 Diagrams:

tf1-8-n
