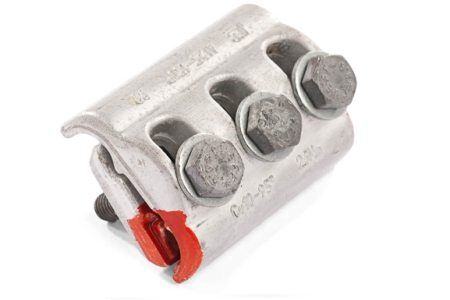

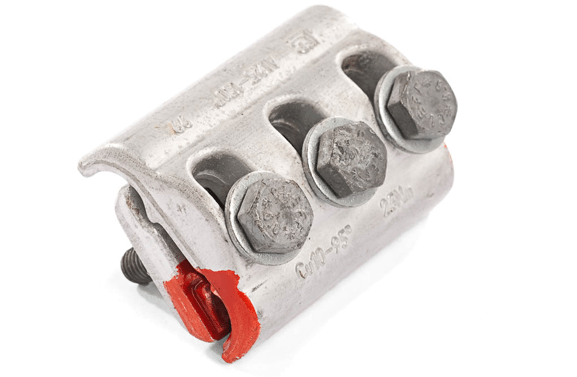

Al/Cu Bimetallic PG Clamp with 3 Bolts - According to DIN Standard

Group 213 Category

DIN 48201, DIN 48204

Share on facebook
Share on twitter
Share on linkedin
Share on print
Share on whatsapp

Description

For connection of Al conductors according to DIN 48201 & ACSR conductors according to DIN 48204 with copper tap-off conductors according to 48201

Material

Body:

High strength, corrosion-resistant, aluminium alloy (AlMgSi1/Al6082).

Bolts:

Steel 8.8, DIN 933, hot-dip galvanised

Nuts:

Steel 8, DIN 934 hot-dip galvanised

Conical Washers:

Steel, DIN 6796 corrosion-protected

Pressure Pad:

Aluminium alloy with spring washers DIN 127 hot-dip galvanised

Stainless steel A2 bolts and nuts available according to order.
* Conical washers or pressure pad according to order

Minimum Torque Moments:
M8 : 23Nm
M10 : 46Nm

Cat. No.Conductor Dimensions
Cross-Sections sq. mm
Diameter Ø mmDimensions mmBoltsWeight
100 Pcs.
Kg.
AlACSRCuAlCuLBD
10133072125-15025/4-120/2010-956.3-15.7 3.5-12.548.064.022.0-22.03xm8x4521.5
10133071635-185 35/6-150/2535-1857.5-17.5 7.5-17.558.097.033.0-33.03xm10x6048.2
10133071750-300 35/6-265/3535-2409.0-23.07.5-20.366.0105.035.0-35.03xm10x7059.2

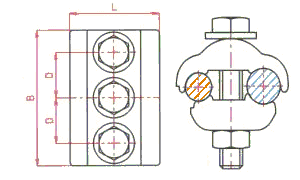

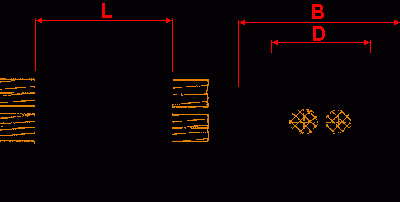

Diagrams:

drwg1.3
