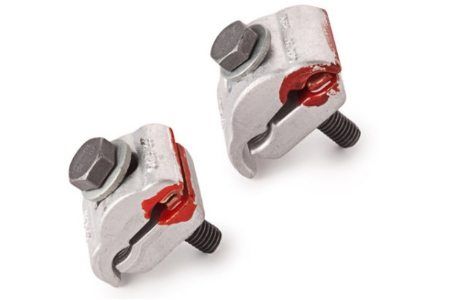

Al/Cu Bimetallic PG Clamp with 1 Bolt - According to DIN Standard

Group 211 Category

DIN 48201, DIN 48204

Share on facebook
Share on twitter
Share on linkedin
Share on print
Share on whatsapp

Description

For connection of Al conductors according to DIN 48201 & ACSR conductors according to DIN 48204 with copper tap-off conductors according to DIN 48201

Material

Body:

High strength, corrosion-resistant, aluminium alloy (AlMgSi1/Al6082).

Bolts:

Steel 8.8, DIN 933, hot-dip galvanised.

Nuts:

Steel 8, DIN 934 hot-dip galvanised pressed into lower part

Conical Washers:

Steel, DIN 6796 corrosion-protected.

Minimum torque moments:
M8 : 23Nm

Cat. No.Conductor Cross Section sq. mmConductor Diameter
ֳ˜ mm
Dimension mm. Bolt
AlACSRCuAlCuLB
10133070416-701.5-1026.036.21xM8x40
10133070516-951.5-3526.036.21xM8x40
10133070616-706-5026.039.51xM8x40
10133070735-12010-5030.043.01xM8x40

  Cat. No.

101330704, 101330705, 101330706, 101330707

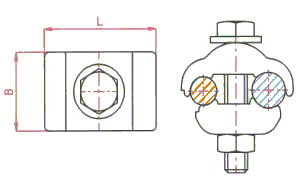

Diagrams:
