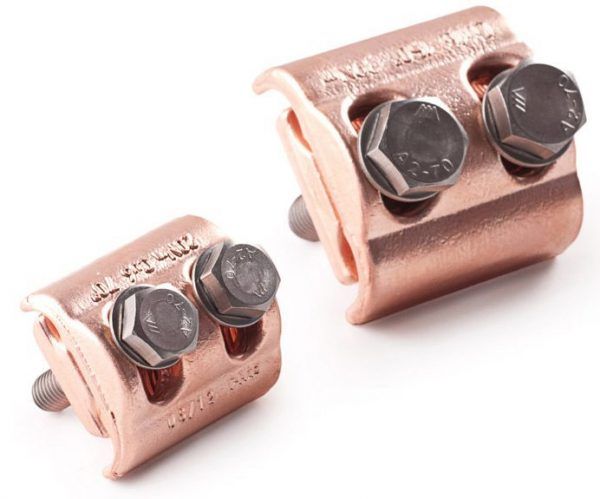

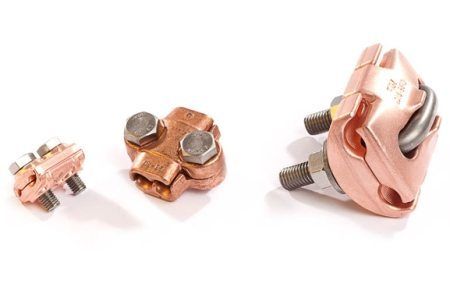

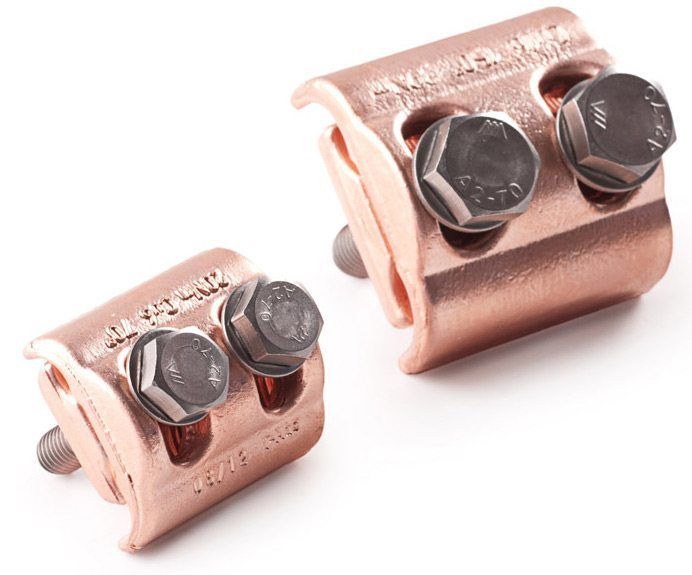

Cu PG Clamp According to DIN Standard

Group 205 Category

DIN 48072

Share on facebook
Share on twitter
Share on linkedin
Share on print
Share on whatsapp

Description

For tap-off connection of copper conductors.

Material

Body:

High strength copper alloy (CuNi2Si)

Bolts:

Stainless steel.
Option to high strength copper alloy, F-60.
DIN 933.

Nuts:

Stainless steel.
Option to copper.
DIN 934.

Surface:

Uncoated

Conical Washers:

Steel, DIN 6796.

* Only with pressure-pad.

Minimum Torque Moments:
M6 : 7Nm
M7 : 14Nm
M8 : 20Nm
M10 : 39Nm

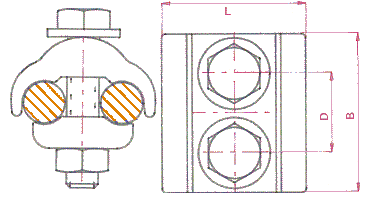

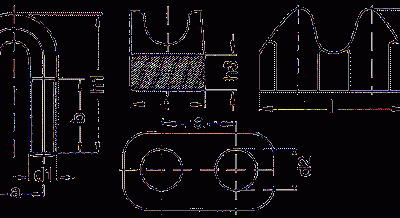

Cat.
No.
Conductor Dimensions Dimension mm.BoltsWeight
100 Pcs.
Kg.
Cross Section
sq. mm
ײ³ֻœ Diameter mmLBD
1013305632.5-25
1013305656-50
1013305666-70 3-10.5 25.036.01xM8x40 11.9
1013305694-352.2-7.529.030.016.52xM7x30
1013305706-50
1013305716-70 3-10.5 36.048.020.02xM8x40 19.9
10133057210-95 42.542.022.52xM8x4527
10133057316-1504.5-15.752.050.027.02xM10x50 45.3
10133231595-240
