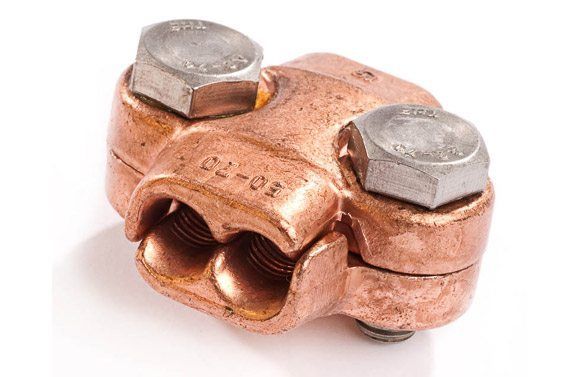

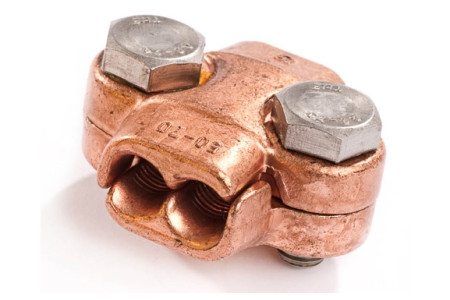

Cu Dead-End Clamp According to DIN Standard

Group 207_KP Category

DIN 48201

Share on facebook
Share on twitter
Share on linkedin
Share on print
Share on whatsapp

Description

For stranded copper conductors according to DIN 48201

Material

Body:

High strength copper alloy (CuNi2Si)

Bolts:

Stainless steel.
Option to high strength copper alloy (F60).
DIN 933.

Nuts:

Stainless steel.
Option to copper.
DIN 934.

Surface:

Uncoated

Mininmum Torque Moments:
M7 : 14Nm
M8 : 20Nm
M10 : 39Nm

Cat.
No.
Conductor
Cross Section
sq. mm
Conductor
Diameter
Ømm
Dimension mm.Bolts
LBD
101330524 10-16 4.05-5.1 25.034.0 20.02xM6x20
101330525 25-35 6.30-7.5 36.043.6 26.02xM8x25
101330526 50-70 6.30-9.0 46.056.034.0 2xM10x25
101330529 50-70 9.00-10.5 35 45 28 2xM8x30
10133062110-354.05-7.5 293518.52xM8x25
101330622 25-506.30-9.0 3543222xM8x30

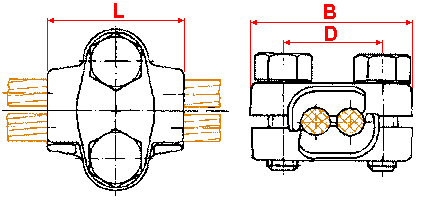

 Diagrams:
