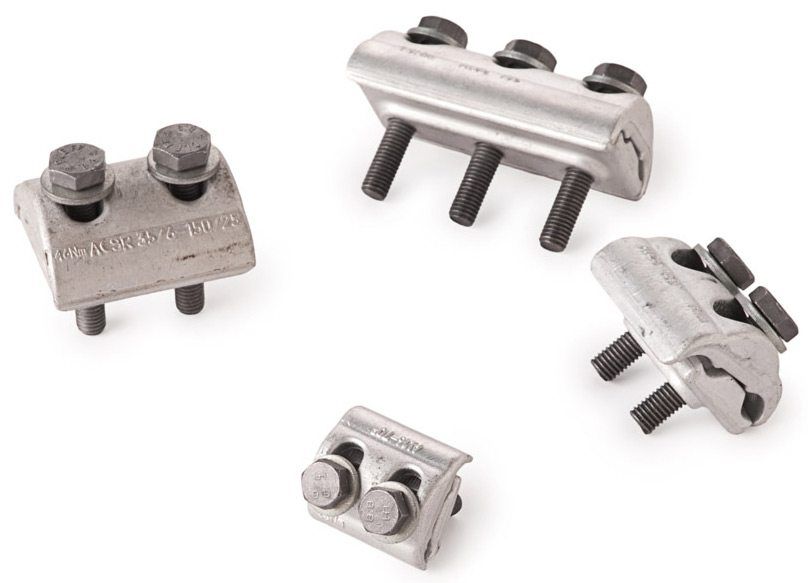

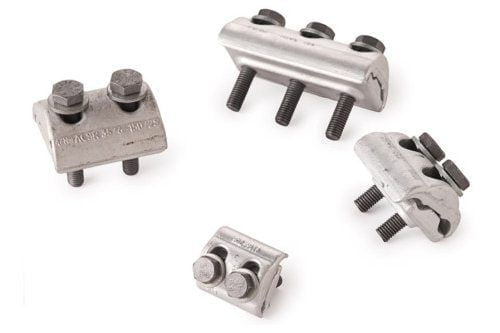

Al PG Clamp According to DIN Standard

Group 200 Category

DIN 48072

Share on facebook
Share on twitter
Share on linkedin
Share on print
Share on whatsapp

Description

For tap-off connection of aluminium alloy conductors
according to DIN 48201 & ACSR conductors according to DIN 48204

Material

Body:

High strength, corrosion-resistant, aluminium alloy (AlMgSi1)

Bolts:

DIN 933, steel 8.8, hot-dip galvanised

Pressure Pad:

aluminium alloy

Spring Washers:

DIN 127, steel, hot-dip galvanised

Conical Washers (According to order):

DIN 6796, corrosion-protected

Stainless steel A2 bolts available according to order.
* Pressure pad and spring washers only.

Minimum Torque Moments:
1/4”NF : 9.5Nm
M8 : 23Nm
M10 : 46Nm

Cat. No.Conductor Cross
sq. mm
Conductor Diameter
ֳ˜mm
Dimension mm. Bolts
Al ACSRL B D
10133066610-9516/2.5-70/124-12.542.542.022.52xM8x45
1013306676-353-7.527.535.016.02xM6x30
10133066810-504.0-9.032.038.020.02xM8x45
10133066916-7016/2.5-70/125.1-11.736.040.020.02xM8x40
10133067016-12016/2.5-95/155.1-1445.050.025.02xM8x45
10133067225-15025/4-120/206.3-15.750.050.027.02xM10x50
10133067435-18535/6-150/257.5-17.555.064.033.02xM10x60
10133067835-18535/6-150/257.5-17.555.097.033.0-33.03xM10x60
10133068035-30067.0105.035.0-35.03xM10x70
10133211395-240
1013326951670/125.1-11.745.039.22xM8x45
10133269950-15050/8-120/209-1655.047.02xM10x40

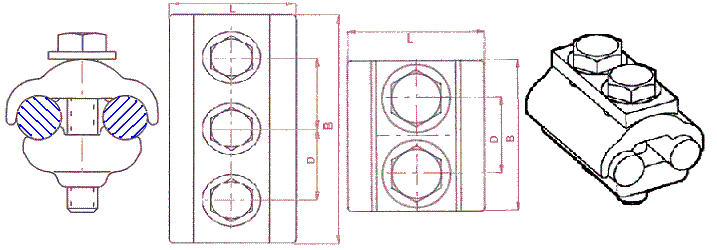

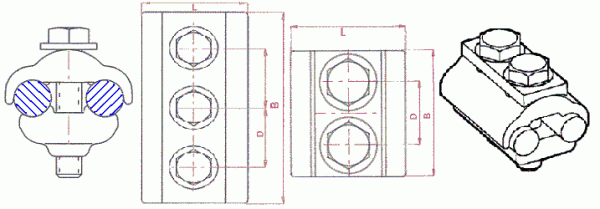

 Diagrams:

t-n-1-6-f-1
