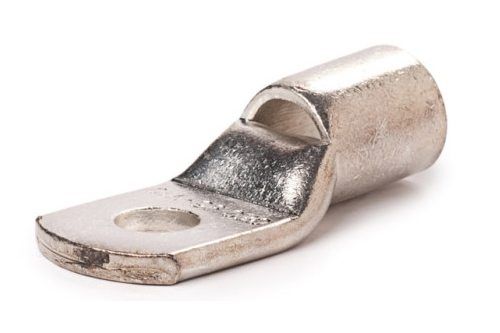

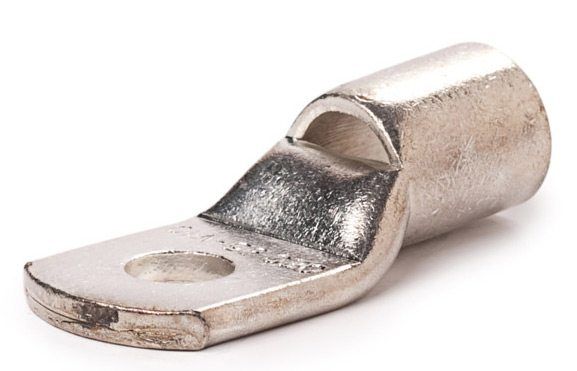

Copper Compression Cable Lug - Standard Type, According to DIN Standard

Standard type

Share on facebook
Share on twitter
Share on linkedin
Share on print
Share on whatsapp

Description

Material

Copper.

Surface:

Tin-plated.

Sector-shaped conductors must be rounded with round-forming dies

Cat. No.Ref.Conductor
Cross Section
sq. mm
Dimensions mmWeight
100 pcs. Kg's
d1d2
1013032406x66 3.8 6.5 0.22
101303241 10x6 10
4.5 6.5 0.31
101303242 10x8 10 4.5 8.4 0.28
101303244 16x6 16 5.4 6.5
0.4
101303245 16x816 5.4 8.4 0.4
101303246 16x10 16 5.4 10.5 0.5
101303250 25x8 25 6.8 8.4 0.68
101303251 25x10 25
6.8 10.5 0.86
101303252 25x13 25 6.8 13 0.81
101303257 35x8 358.2 8.4 1.29
101303258 35x10 358.2 10.5 1.19
101303259 35x13 35 8.2
13 1.11
101303261 50x10 509.5 10.5 1.82
101303262 50x1350 9.5 13 1.61
10130326470x1070
10130326670x1370
10130326895x1095
10130326995x1395
101303272120x13120
101303274150x10150
101303275150x13150
101303278185x13185
101303279185x17185
101303281240x13240
101303282240x17240

 User Instructions:

The compression cable lugs are marked with a code number in front of the logo (roughly corresponding to the outer diameter of the compression sleeve). The required compression die is selected in accordance with this code number.

For hexagonal compressions made with hand-operated mechanical compression tools, browned dies (black) are to be used for copper cable lugs, whereas aluminium cable lugs require electro-galvanized dies (white).

For hydraulic compression tools there is no differentiation of dies for copper or aluminium cable lugs.

The compression sleeve of aluminium cable lugs is pre-filled with compression compound which must not be removed before the compression, neither completely nor in part. Any compression compound escaping during the compression should be wiped off.

Copper cable lugs are not pre-filled with compression compound.

Assembly Instructions

  1. Clean the conductor or cable ends with a wire brush to remove dirt and oxidation.
  2. Insert conductor or cable ends into the compression sleeve up to the stop.
  3. Before proceeding, make sure that the code number on the cable lug matches that on the compression die.
  4. Cable lugs are compressed by starting from the plate end and working out toward the sleeve end. The number of compressions is marked on the sleeve. It is important to make the specified number of compressions.

Mezer_11-11_11-29-13

Diagrams

3.8
