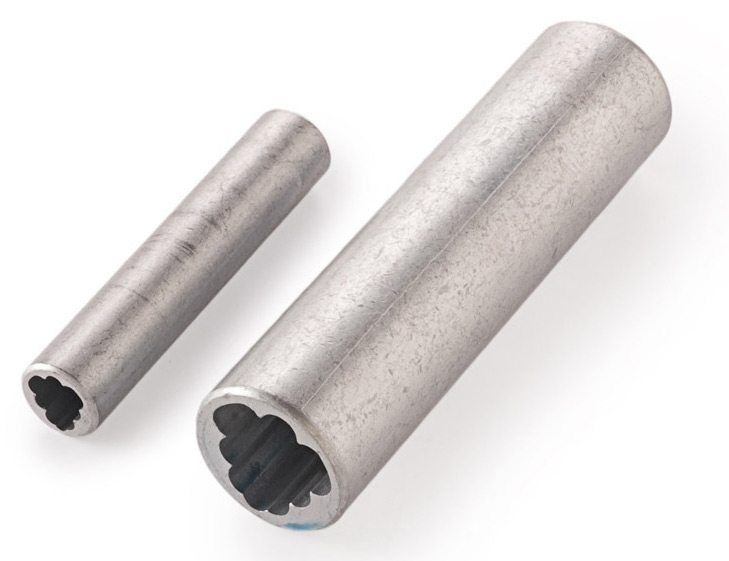

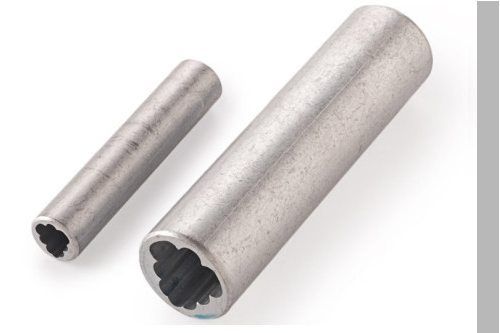

Al Non-Tension Compression Joint for Sectorial Conductor According to DIN

DIN 57295

Share on facebook
Share on twitter
Share on linkedin
Share on print
Share on whatsapp

Description

For non-tension connections of sector-shaped stranded/sector-shaped solid aluminium conductors as well as circular solid aluminium conductors according to DIN VDE 0295.

The sector-shaped conductors need not be round-formed.

Al compression joints are pre-filled with compression compound and sealed with plastic caps.

Material

AlMgSi

Surface:

Uncoated

Cat. No.Conductor
Cross-Section
sq. mm
Die Code
No.
---No of CompressionsWeight 100 Pcs.
Kg.
Strand
sm
Solid
se/re
L mmmech.hyd
101304845 35 50 16 90 4-4 2-2 2.8
101304846 50 70 18
90 4-4 2-2 3.5
101304847 70 95 22 90
4-4 2-2 6.1
101304848 95 120 22 90 4-4 2-2 6.4
101304849 120 150 25
90 4-4 2-2 7.2
101304850 150 185
27 110 5-5 3-3 13.6
101304851 185 240 32 130 6-6
3-3 15.8
101304852 240 300 34 130
6-6 3-3 21.5

User Instructions:

The compression joints are marked with a code number in front of the logo (roughly corresponding to the outer diameter of the compression sleeve). The required compression die is selected in accordance with this code number.

For hexagonal compressions made with hand-operated mechanical compression tools, browned dies (black) are to be used for copper, bronze and steel compression joints, whereas aluminium compression joints require electro-galvanized dies (white).

For hydraulic compression tools there is no differentiation of dies for different metals.
The compression sleeve non-tension and full-tension of aluminium compression joints and of full-tension copper compression joints are prefilled with compression compound which must not be removed before the compression, neither completely nor in part. Any compression compound escaping during the compression should be wiped off.

Assembly Instructions

  1. Clean the conductor or cable ends with a wire brush to remove dirt and oxidation.
  2. Insert conductor or cable ends into the compression sleeve up to the centre.
  3. Before proceeding, make sure that the code number on the compression joint is matched to that on the compression die.
  4. Compression joints are compressed by making the first compression at the centre and working out toward the ends. The number of compressions is marked on the sleeve. It is important to make the specified number of compressions.

Diagram:

p2-9
