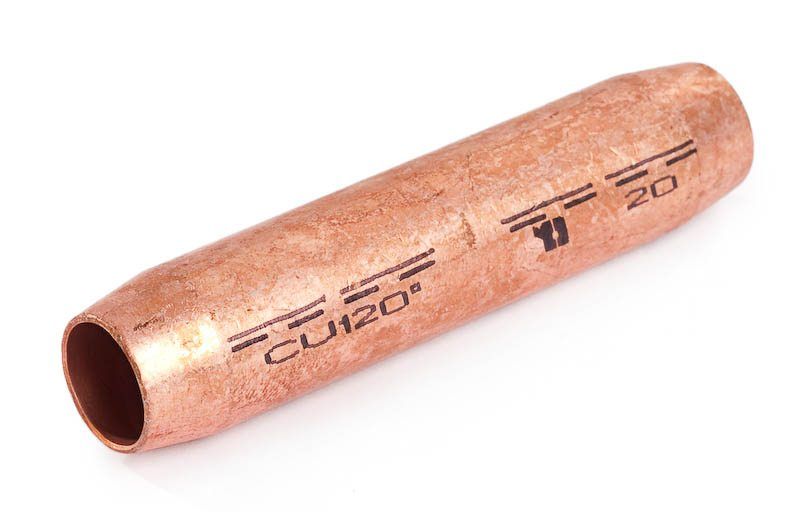

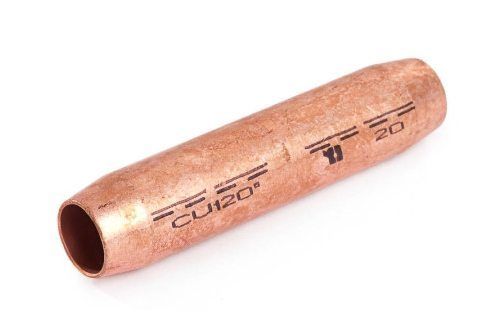

Cu Non-Tension Compression Joint 30 kV According to DIN

DIN 57295

Share on facebook
Share on twitter
Share on linkedin
Share on print
Share on whatsapp

Description

For high voltage with through-hole.

For non-tension connections of high-voltage-copper cables. The compression joints are suitable for paper and plastic-insulated cables. They bear double markings and can be either round compressed or hexagonally compressed, depending on cable type and voltage level.

Material

E-Cu

Surface:

Uncoated.

Cat. No.Conductor
Cross Section
Conductor Diameter
mm
Die Code
No.
Dimension mm Number of
Compressions
Weight 100 Pcs.
Kg. (App.)
DIN 57295hexaground hydr dlhexagonal round hydr
mechhyd
101305301 25 5.6-6.5 10
7.0 50 2-2 - 4.0
101305302 35
6.6-7.5 12 11 HR 8.2 50 2-2 - 3.6
101305303 50
7.7-8.6 14 12 HR 10.0 65 3-3 - 5.5
101305304 70 9.3-10.2 16 14 HR 11.5 65
3-3 - 7.1
101305305 95 11.0-12.0 18 16 HR 13.5 90 4-4 - 11.5
101305306 120 12.5-13.5 20 18 HR 15.5 90
- 2-2 12.9
101305307 150 13.9-15.0 22 21 HR 17.0 106
- 2-2 20.4
101305308 185 15.5-16.8 25 22 HR 19.0 106 - 2-2 22.3
101305309 240 17.8-19.2 28 25 HR 21.5 110 -
2-2 29.5
101305310 300 20.0-21.6 32 24.0 116
- 2-2 31.0
101305311400
101305312500
101305313625

User Instructions:

The compression joints are marked with a code number in front of the logo (roughly corresponding to the outer diameter of the compression sleeve). The required compression die is selected in accordance with this code number.

For hexagonal compressions made with hand-operated mechanical compression tools, browned dies (black) are to be used for copper, bronze and steel compression joints, whereas aluminium compression joints require electro-galvanized dies (white).

For hydraulic compression tools there is no differentiation of dies for different metals.
The compression sleeve non-tension and full-tension of aluminium compression joints and of full-tension copper compression joints are prefilled with compression compound which must not be removed before the compression, neither completely nor in part. Any compression compound escaping during the compression should be wiped off.

Assembly Instructions:

  1. Clean the conductor or cable ends with a wire brush to remove dirt and oxidation.
  2. Insert conductor or cable ends into the compression sleeve up to the centre.
  3. Before proceeding, make sure that the code number on the compression joint is matched to that on the compression die.
  4. Compression joints are compressed by making the first compression at the centre and working out toward the ends. The number of compressions is marked on the sleeve. It is important to make the specified number of compressions.

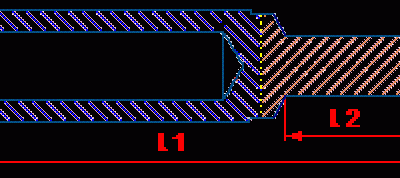

 Diagram:

r2-10
