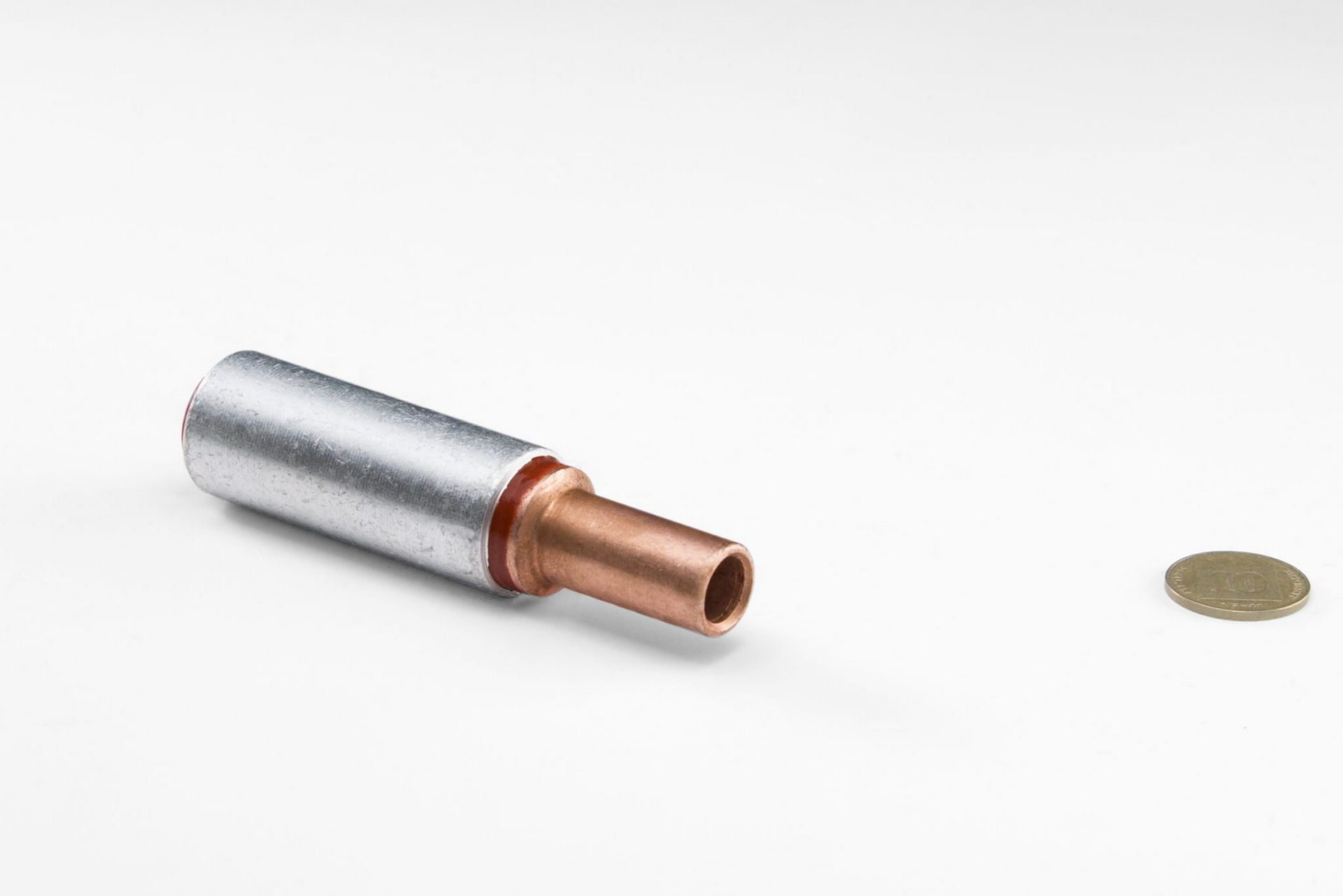

Al/Cu Bimetallic Compression Joint up to 10 kV - According to DIN

DIN 48201, DIN 57295

Share on facebook
Share on twitter
Share on linkedin
Share on print
Share on whatsapp

Description

For non-tension connection of aluminium conductors to copper conductors

Material

Aluminium Part:

Al 99.5

Copper part:

E-Cu

Surface:

Uncoated.

Al compression joints are pre-filled with compression compound and sealed with plastic caps.
Sector shaped conductors must be rounded with round-forming dies before compression.

Cat. No.Conductor
Cross-Section
AlCu
101301059166
1013010641610
1013010651616
101301061256
1013010622510
1013010662516
1013010672525
1013011412550
101301068356
1013010693510
1013010703516
1013010713525
1013010723535
1013010755010
1013010765016
1013010775025
1013010785035
1013010795050
1013011485095
10130114950150
1013010747010
1013010807016
1013010817025
1013010827035
1013010837050
1013010847070
101301144956
1013011429510
1013010859516
1013010869525
1013010879535
1013010889550
1013010899570
1013010909595
10130109112016
10130109212025
10130109312035
10130109412050
10130109512070
10130109612095
101301097120120
101301063120150
10130109815016
10130109915025
10130110015035
10130110115050
10130110215070
10130110315095
101301104150120
101301105150150
10130114618525
10130110618535
10130110718550
10130110818570
10130110918595
101301110185120
101301111185150
101301112185185
10130112324050
10130112424070
10130112524095
101301113240120
101301114240150
101301115240185
101301116240240
101301120240300
10130114530070
10130112230095
101301121300150
101301119300185
101301117300240
101301118300300



User Instructions

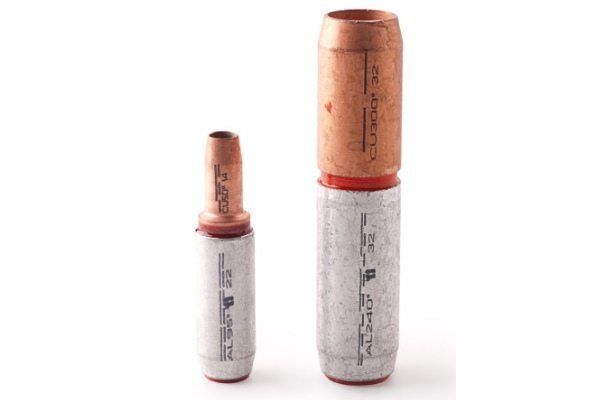

The compression joints are marked with a code number in front of the logo (roughly corresponding to the outer diameter of the compression sleeve). The required compression die is selected in accordance with this code number.

For hexagonal compressi



ons made with hand-operated mechanical compression tools, browned dies (black) are to be used for copper, bronze and steel compression joints, whereas aluminium compression joints require electro-galvanized dies (white).

For hydraulic compression tools there is no differentiation of dies for different metals.
The compression sleeve non-tension and full-tension of aluminium compression joints and of full-tension copper compression joints are prefilled with compression compound which must not be removed before the compression, neither completely nor in part. Any compression compound escaping during the compression should be wiped off.

Assembly Instructions

  1. Clean the conductor or cable ends with a wire brush to remove dirt and oxidation.
  2. Insert conductor or cable ends into the compression sleeve up to the centre.
  3. Before proceeding, make sure that the code number on the compression joint is matched to that on the compression die.
  4. Compression joints are compressed by making the first compression at the centre and working out toward the ends. The number of compressions is marked on the sleeve. It is important to make the specified number of compressions.

Diagram:

p2-8s2







Additional information

Weight 141 kg
