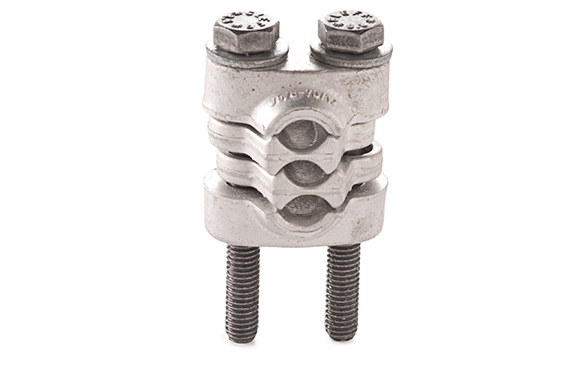

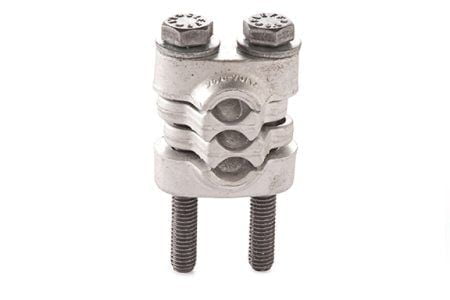

Al Flat Double Terminal Clamp According to DIN Standard

Group 218_101332660 Category

For Two Tie Wires

Share on facebook
Share on twitter
Share on linkedin
Share on print
Share on whatsapp

Description

For fastening conductors to isolators by using two tie wires.

Material

Body:

High strength aluminium alloy (AlMgSi1/Al6082), corrosion- resistant

Surface:

Uncoated.

Bolts:

Steel 8.8, DIN 933, hot-dip galvanised

Conical Washers:

According to DIN 6796 corrosion-protected.

This Type of parallel groove clamp is used in long span systems for fastening conductors to insulators by using two tie wires. The tie wires may be of different cross section than the conductors.

Minimum Torque Moments:
M8: 23

Cat.
No.
Conductor Cross-Section
AL/Cu, Sq mm
No. of
Conductors
Dimensions mm Bolts
abchd
101332660 35/6-70/12 50-70 3 40 32 22 59 M8 2xM8x70

 Diagrams:

Al Flat Double Terminal Clamp According To DIN Standard



Additional information

Weight 2201013 kg
