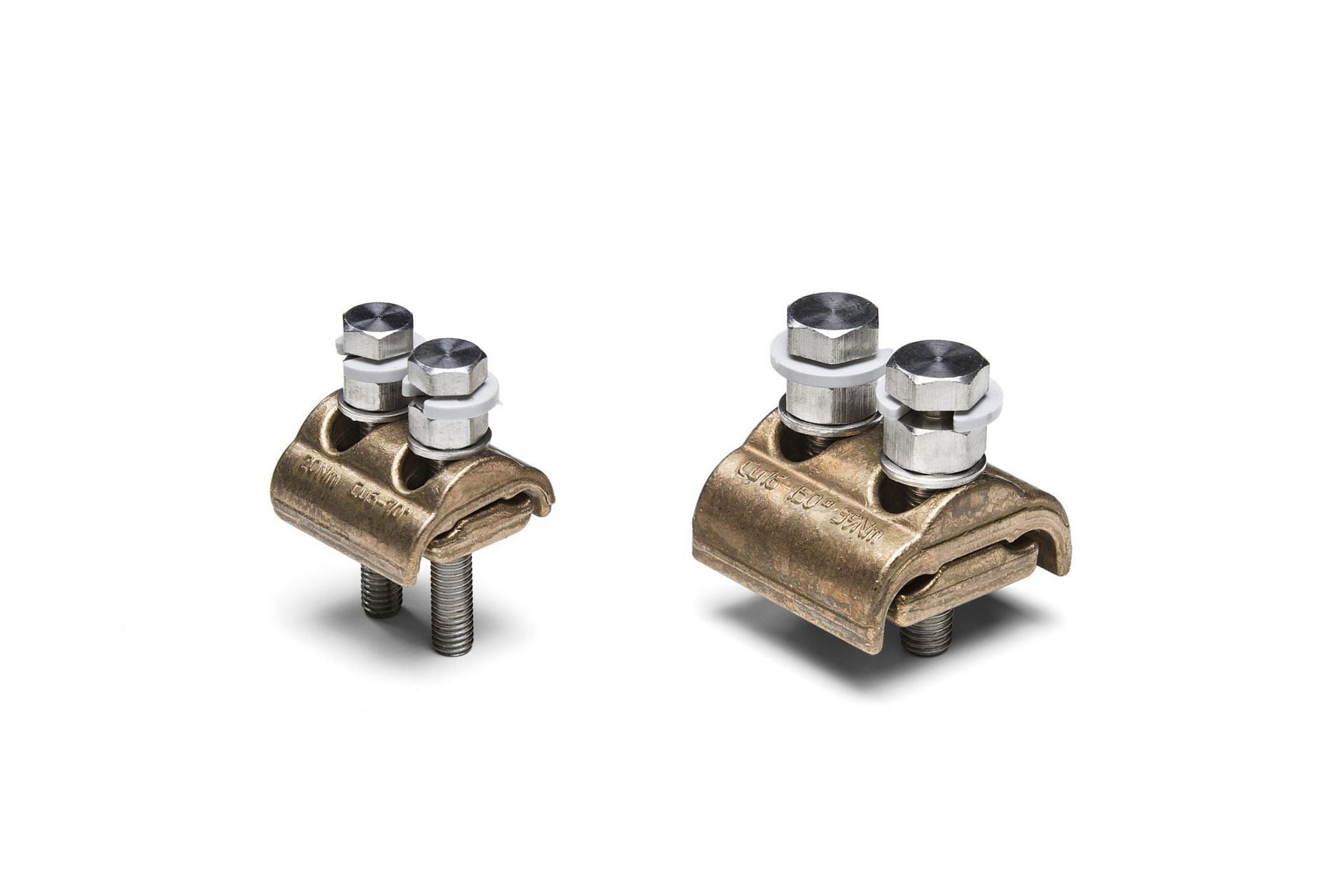

Cu PG Clamp with Shear Head-Off Bolts According to DIN Standard

Group 205_A Category
Share on facebook
Share on twitter
Share on linkedin
Share on print
Share on whatsapp

Description

Material

Body:

High strength copper alloy (CuNi2Si)

Bolts:

Stainless steel.
Option to high strength copper alloy, F-60.
DIN 933.

Nuts:

Stainless steel.
Option to copper.
DIN 934.

Surface:

Uncoated

Conical Washers:

Steel, DIN 6796.

* Only with pressure-pad.

Minimum Torque Moments:
M6 : 7Nm
M7 : 14Nm
M8 : 20Nm
M10 : 39Nm

Cat.
No.
Conductor Dimensions BoltsWeight
100 Pcs.
Kg.
Cross Section
sq. mm
ײ³ֻœ Diameter mm
1013315666-70 2.7-10.5 1xM8x40 11.9
1013315706-50
1013315716-70 2.7-10.5 2xM8x40 19.9
10133157210-95 3.5-12.52xM8x4527
10133157316-1504.5-15.72xM10x50 45.3
