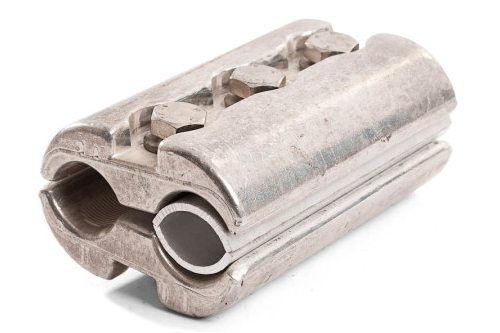

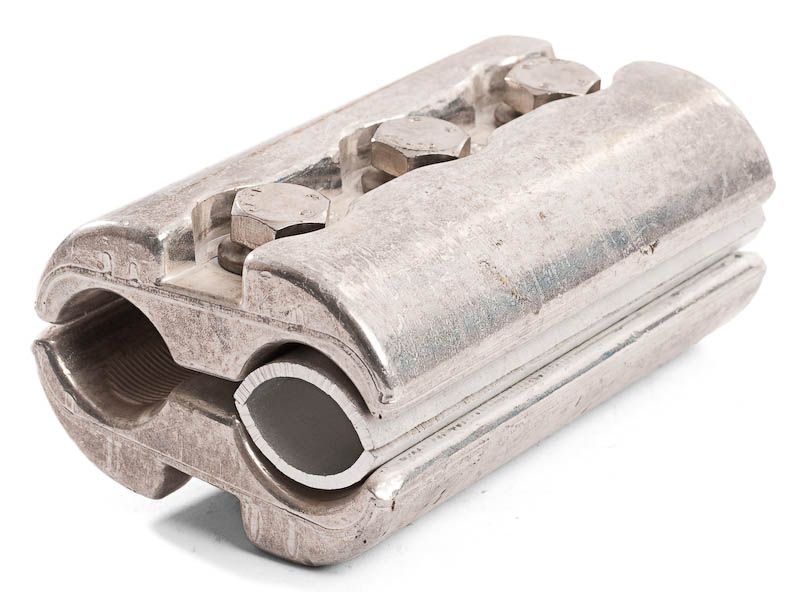

Al PG Jaw-Clamp with Insert According to DIN Standard

Group 202 Category

DIN 48075

Share on facebook
Share on twitter
Share on linkedin
Share on print
Share on whatsapp

Description



For Al and ACSR connection of two different conductor diameters.

Material

Body:

Aluminium alloy (AlMgSi1/Aך6082 F32).

Bolts:

Steel, 8.8, hot-dip galvanised or stainless steel A2, according to order.

Minimum torque moments :
M10 : 46Nm
M12 : 80Nm

Cat.
No.
Conductor AConductor BDimensions mmBoltsWeight
1 Piece
Kg.
Cross Section sq.mm. Diameter Cross Section sq.mm. Diameter LBD
101340336 300/50 24.5/20.319.1-21.0/23.5-25.725.7 76.0120.040.0-40.0 3xM12x50 0.95
101340339 593 31.7/24.5 300/50 31.7 140 94 47.0-47.0 3xM12x60 1.25
101340367 680/85 26.3/14.735.2-37.0/23.5-25.7 36.0 98.0150.0 52.0-52.03xM12x65 1.35
101340368 680/85 36.0/31.735.2-37.0/29.0-31.936.0 98.0150.052.0-52.0 3xM12x65 1.45

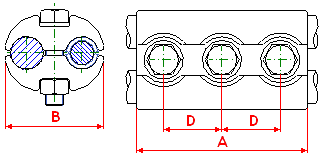

 Diagrams:
