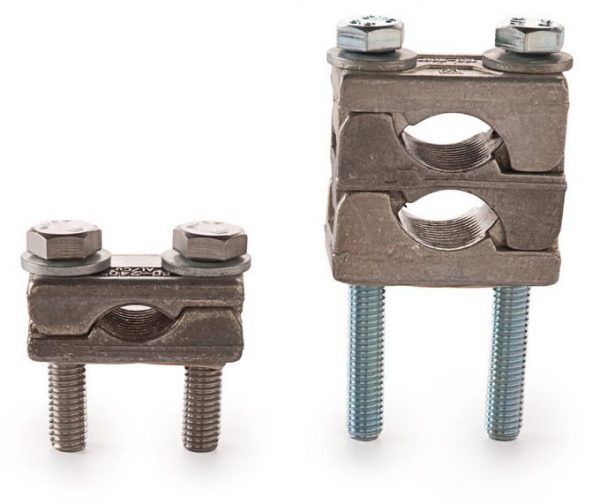

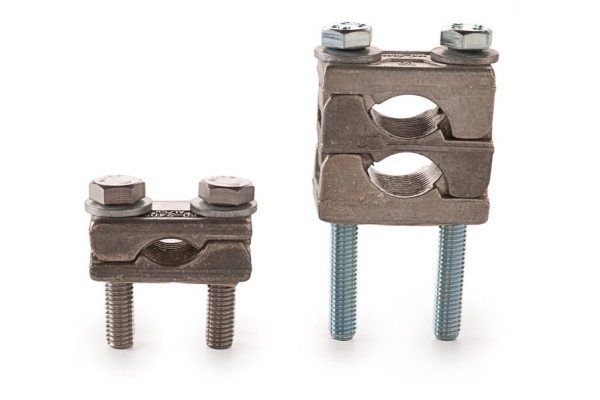

Al/Cu Flat Double Terminal Clamp According to DIN Standard

Group 220 Category

TERMINALS TO BUSBAR

Share on facebook
Share on twitter
Share on linkedin
Share on print
Share on whatsapp

Description

Direct terminal clamp for the connection of copper and aluminium conductors to flat busbars.

Material

Brass (CuZn)

Surface:

Tin-plated

Bolts:

Steel, 8.8 DIN 933, DIN 84 (M5), Electro Tin-plated

Spring Washers:

Steel, DIN 127 Tin-plated

This universal multi-range direct terminal clamp is suitable for the
connection of stranded copper and aluminium cables to flat busbars.
The conductor channels of the clamp are grooved to ensure good
electrical contact and low contact resistance.

The double terminal clamps are intended for use in distribution
terminals fuse connecting blocks.

Minimum Torque Moments:
M8 : 23Nm
M5 : 5.5Nm

Cat.
No.
Conductor Cross-Section
AL/Cu, Sq mm
No. of
Conductors
Dimensions mmBoltsWeight 100 Pcs.
Kg.
sm/rm (Strand)(se) Solidabchd
101332660 35/6-70/12 50-70 3 40 32 22 59 M8 2xM8x70
101330410 35/16-70 50-70 1 25 15 15 23 M5 2xM5x25 3.5
101330412 120-240 120-185 1 42 22 28 50 M8 2xM8x45 15
101330413 120-300 120-185 2 45 25 30 80 M8 2xM8x80 32

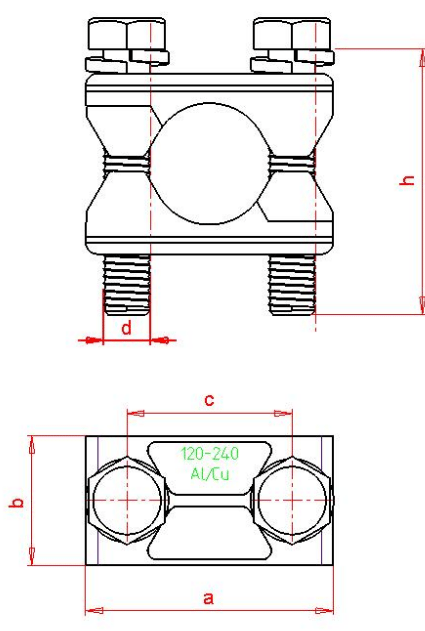

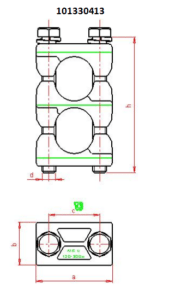

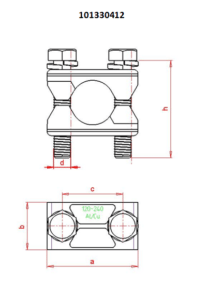

 Diagrams:
