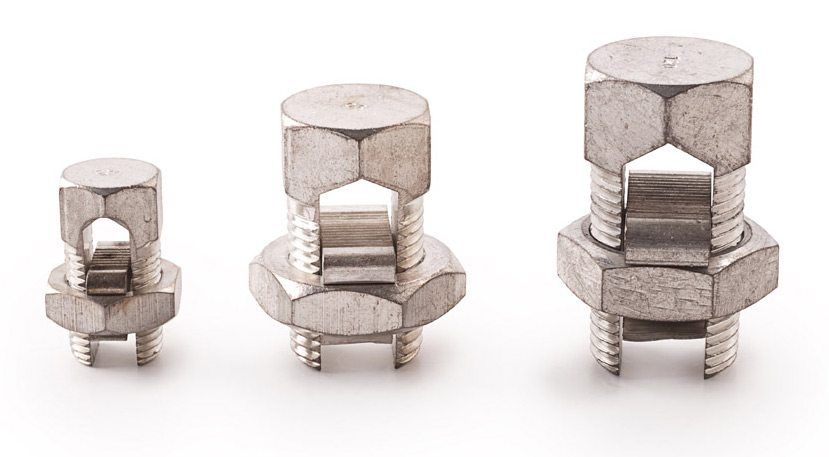

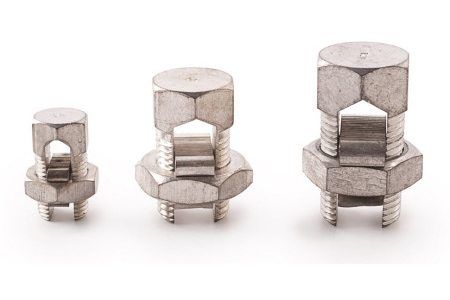

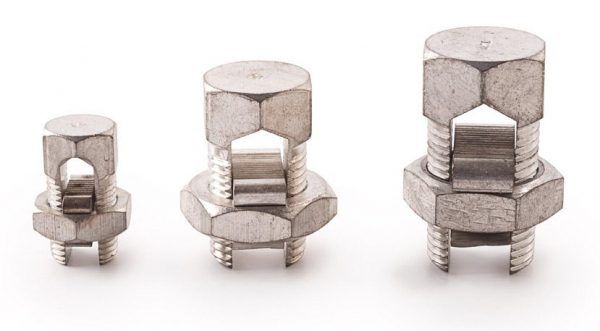

Split-Bolt Connector with Hexagonal Head According to DIN Standard

Group 231 Category

According to British Standard.

Share on facebook
Share on twitter
Share on linkedin
Share on print
Share on whatsapp

Description

For Copper Conductors.

Material:

Body and Nut:

Brass (CuZn).

Surface:

Tin-plated * according to BS 1872 SN6C.

*Also available in copper plated surface.

Cat.
No.
Conductor
Cross-Section
sq. mm
Conductor
Diamter Ø mm
Dimensions mmWeight 100 Pcs.
Kg.
MinMaxACD
101323006 6 2.70 4.10 19 11.3 13.34 1.35
10132301010
101323016 16 3.80 5.60 24 13.34 18.00 2.75
101323025 25 4.30 6.60 26 15.24 20.83 3.90
101323035 35 5.30 8.12 31 18.00 23.30 5.70
101323050 50 6.60 10.16 38 20.83 27.90 7.20
101323070 70 7.30 11.17 41 23.30 30.40 11.60
101323095 95 8.30 13.46 47 30.50 37.40 21.90
101323120 120 10.50 16.10 54 30.50 37.40 23.00
101323150150
101323185185
101323240240

Diagrams:

t1-15
