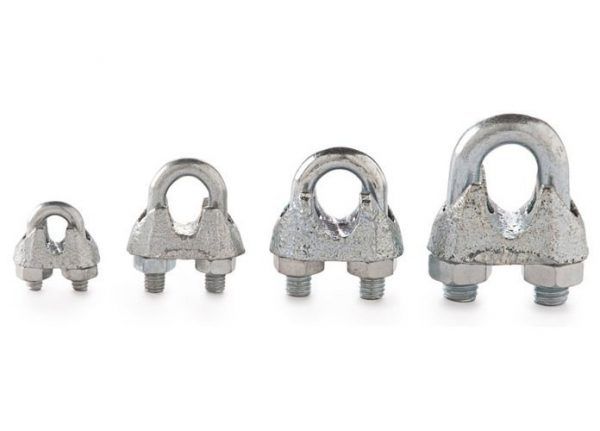

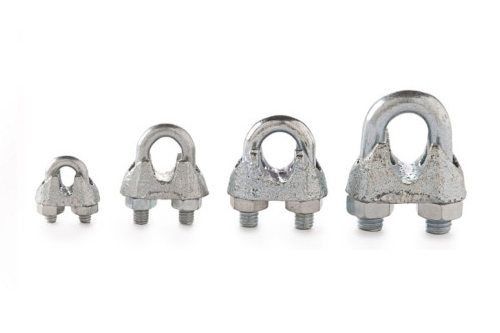

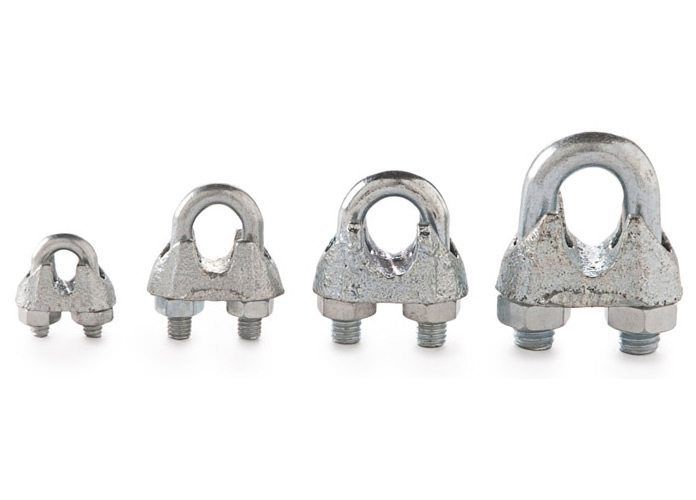

Cable Clamp "U" Bolt Type According to DIN Standard

Group 273 Category

DIN 1142, DIN 741

Share on facebook
Share on twitter
Share on linkedin
Share on print
Share on whatsapp

Description

For steel cable connections at minor requirements (**). and heavy std. (*)

Material

Body:

* Malleable cast iron GTW65 DIN 1692, or GTS45 hot dip galvanized.
** High strength aluminium alloy (AlMgSi), corrosion-resistant, made by hot-forging.

“U” Bolt:

Steel, St-44, DIN 17100, electro galvanized.

Nuts:

Steel, grade 6, DIN 934, or American std. of hexagonal regular nuts. h3

Cat. No.SizeMax. Torque Moment
Nm
Weight
100 Pcs.
Kg.
Dimensions (mm)
Size a±0.5 b±1.0 Ød1 Ød2 h1±1.0 h2±1.0 h3±0.5 l±1.0 t±0.5
101000114** 1/4" 14.0 2.61/4 16.0 21.0 1/4"UNC 7.0 36.0 12.0 6.5 30.0 15.0
101000156* 5/16" 35.0 8.35/16 18.0 25.0 5/16"UNC 9.0 41.0 18.0 7.5 38.0 22.5
101000118* M-8 37.08.4M8 18.0 25.0 M8x1.25 9.0 41.0 18.0 7.5 38.0 22.5
101000138* 3/8" 55.0 12.83/8 21.5 32.0 3/8"UNC 10.5 52.0 23.0 10.0 46.0 23.0
101000139** 3/8" 46.0 9.73/8 21.5 32.0 3/8"UNC 10.0 52.0 21.5 13.0 48.0 25.0

Diagrams:

t1-20n
