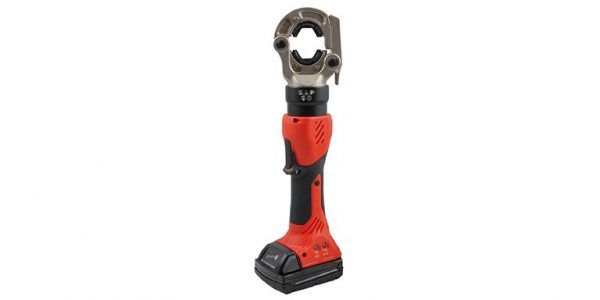

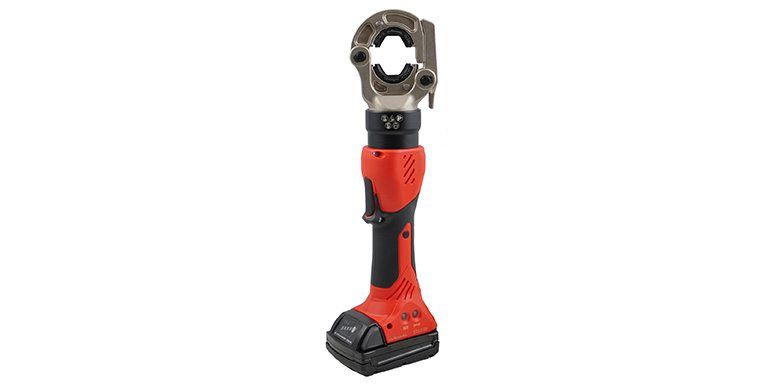

Stilo60 - Battery Operated Hydraulic Crimping Tool - 60 kN 'intercable'

Group 245_101404175 Category

Designed to crimp terminals and connectors up to a maximum of 300 mm² cable cross sections

Share on facebook
Share on twitter
Share on linkedin
Share on print
Share on whatsapp

Description

Technical Characteristics:

• Very light and compact structure

• Ergonomic 2-Component handle for one-handed fatigue-proof working

• Rotation 360° allows easy operation also in confined spaces

• Electronic crimping cycle control and monitoring

• Manual return

• Mini USB-port:

– Output of all cycles (compression curves) and fault messages

– Maintenance control

– Software inclusive

• Battery state control is readable directly on the battery

Set Equipment:

  • Battery-operated hydraulic crimping tool 60kN
  • Battery Li-Ion 18V 1.5Ah (RA12)
  • Battery charger
  • USB-cable and Software (CD)
  • Plastic case
  • Plastic case for crimping dies
Cat. No.DescriptionOrder No.DimensionsWeigth
101404175Set Crimping ToolStilo60560x 357x118mm6.3 kg
Compression section max. Compression forceOperating pressureMax. strokeBattery voltageBattery capacityTool weightTool dimensions
300 mm²60 kN650 bar (65MPa)17 mm18 V1,5 Ah3.3 kg383x124x81mm
Cat. No.Dies Set mm²Dies Code
101404210 65
101404211106
101404213168
1014042152510
1014042173512
101404219 5014
101404221 7016
1014042239518
10140422512020
101404227 15022
10140422918525
10140423124028
101404233 30032
101404235 30034
https://www.youtube.com/watch?time_continue=3&v=JUwLAze2wAw
