HPI130-H Hand Operated Hydraulic Crimping Tool 'intercable'

Group 242_101404130 Category
Share on facebook
Share on twitter
Share on linkedin
Share on print
Share on whatsapp

Description

Technical Characteristics:

  • Sturdy and compact structure
  • Crimping H-head; rotates 270°
  • Quick feed with double hydraulic cylinder
  • Single hand use by inner side handle
  • Automatic pressure safety valve
  • Manual return in any position
  • Adapters and punch for deep indent compression
  • Tool dimensions: 174X569X78 mm
  • Tool weight: 5.8 kg

Set Equipment:

  • Test report
  • Manual crimping tool

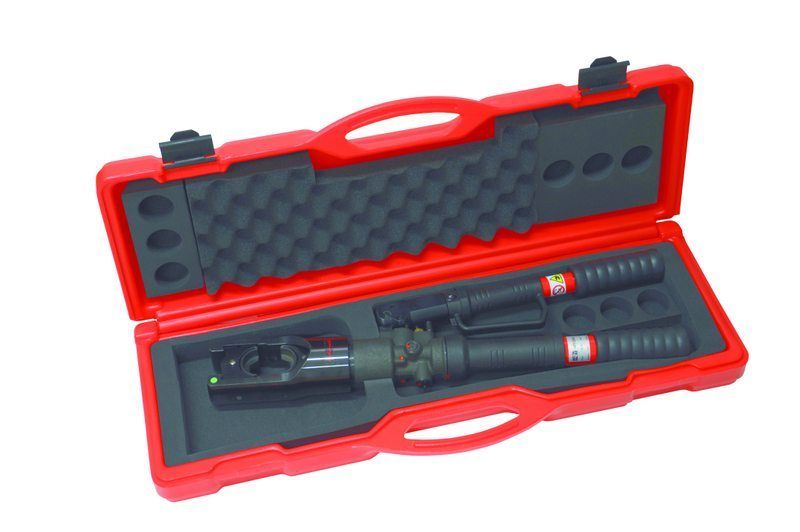

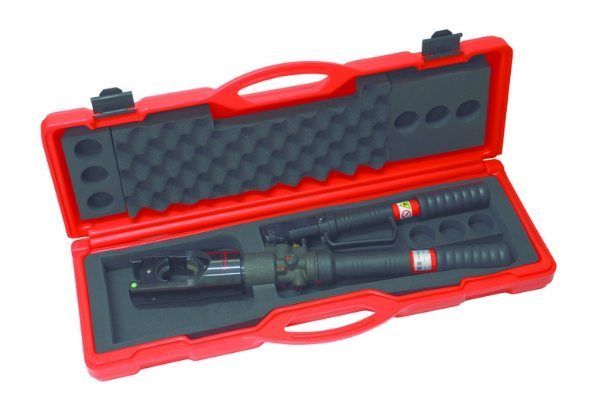

  • Plastic case for crimping tool and 11 crimping dies

Specifications:

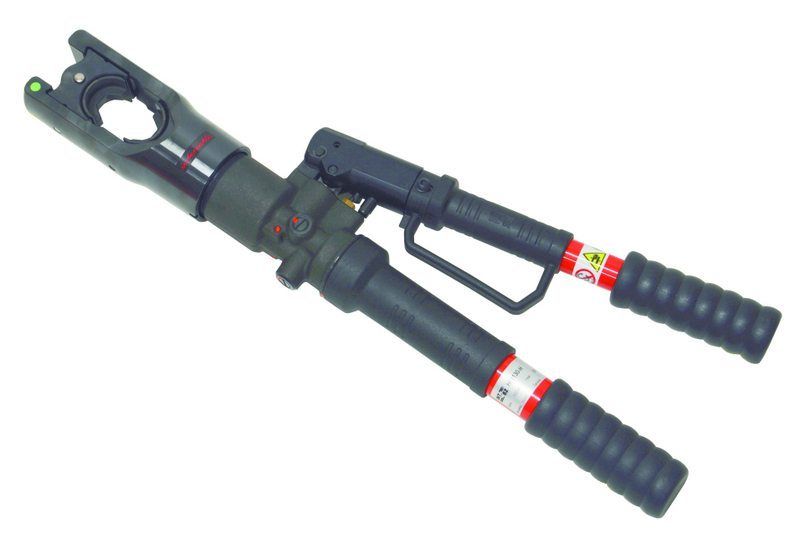

HPI130-H Hand Operated Hydraulic Crimping Tool
Compression Section Maximum Stroke Compression Force Operating Pressure
max.400 mm² 30 mm 130 kN 700 bar (70 MPa)
Set crimping tool
DescriptionCat. No.DimensionsWeight
Set crimping tool101404130700X260X105 mm7.6 kg
