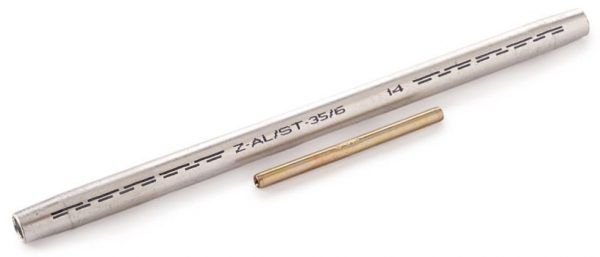

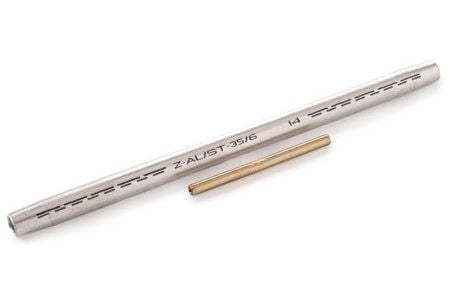

Al/St Full-Tension Compression Joint According to DIN 48206

DIN 48085 part 3

Share on facebook
Share on twitter
Share on linkedin
Share on print
Share on whatsapp

Description

For full-tension connections to ACSR conductors DIN 48204

Material

Steel sleeve:

ST 52

Aluminium sleeve:

Al 99.5

Surface:

Steel sleeve zinc galvanized, aluminium sleeve uncoated

*Steel Sleeves: Hexagonal Overlapping compression.

Connectors are pre-filled with compression compound.
User instructions: see 2.5.1

Cat. No.Conductor
Cross-Section
sq. mm
Conductor
Ø mm
Die
Code
No.
Dimensions
mm.
No of CompressionsWeight
100 Pcs.
Kg.
STAl
STALL1/L2mech./hydmech./hyd.
ST/ALST/ALD1/D2D3/D4
10130500225/42.5/6.86/1212/7.66.3/2.7210/654-4/--/-6.3
10130500335/6 2.7/8.16/1414/9.0 6.3/3.0245/805-5/-
9-9/5-58.4
101305004
50/83.2/9.67/16 16/10.87.5/3.5280/956-6/-9-9/5-512.0
10130500570/124.3/11.79/1818.5/12.59.5/4.8280/956-6/-12-12/6-6
18.2
10130500695/15 5.0/13.6 9/22 22.5/14.89.6/5.5310/956-6/-12-12/6-627.6
101305007120/205.7/15.513/2525/16.513/6.2390/1207-7/--/6-6 48.0
101305009 150/25 6.31/17.113/2828.5/18.313/6.8390/120-/--/-58.3
101305010210/35 7.47/20.315/3434.5/21.915/8.1490/150-/--/-100.2
101305013240/408.04 /21.915/3434.5/23.515/8.7490/150-/-/- 93.1

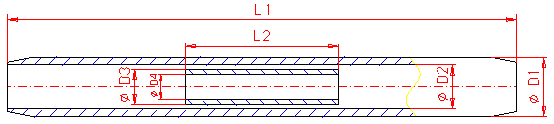

 Diagram:

m2-5
