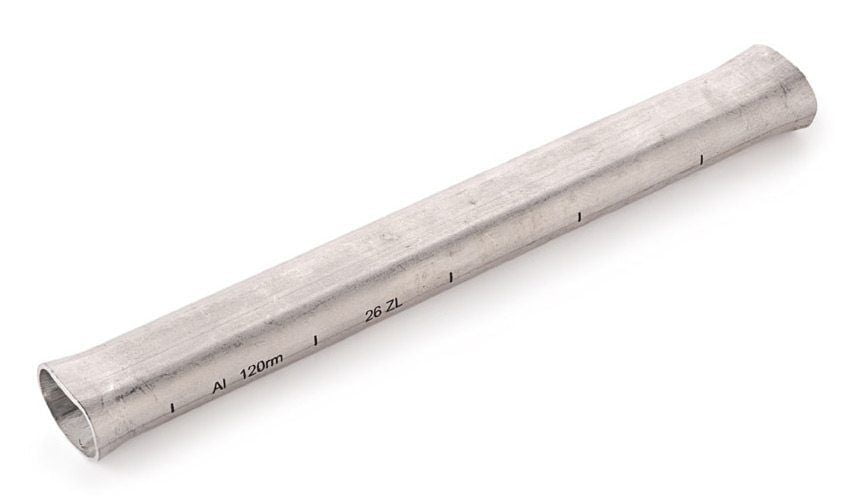

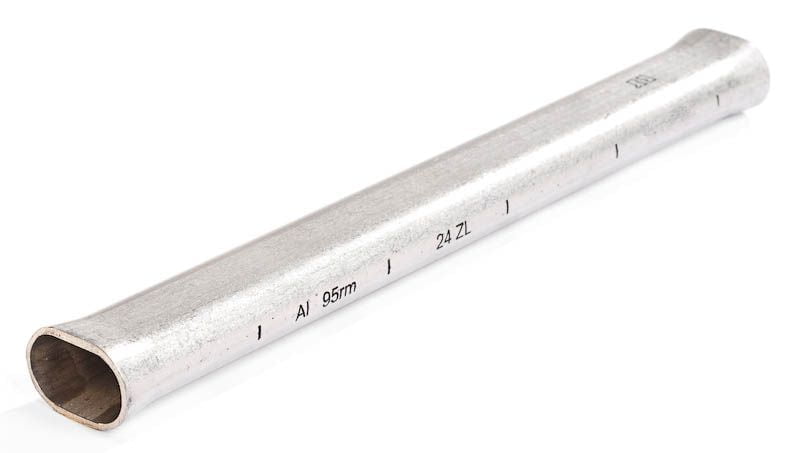

Al Full-Tension Joint Oval Section DIN 48201

DIN 48217

Share on facebook
Share on twitter
Share on linkedin
Share on print
Share on whatsapp

Description

For Al conductors 1-10KV Al conductors according to DIN 48201

Material

Al 99.5

Surface:

Uncoated

Cat. No.Conductor
Cross Section
sq. mm
Conductor Diameter
Ø mm
Die Code No.No. of
Compressions
Dimensions mmWeight 100 Pcs.
Kg.
d1d2l
101301299 25 6.3 16PO 6 14 7.0 112 2.0
101301300 35 7.5 18PO 7 16 8.0 126 2.4
101301301 50 9.0 20PO 10 19.5 10.0 180 4.2
101301302 70 10.5 22PO 15 22.5 11.5 198 5.6
101301303 95 12.5 24PO 15 26.5 13.5 264 10.9
101301304 120 14.0 26PO 15 30.0 15.0 286 13.5

 User Instructions:

The compression joints are marked with a code number in front of the logo (roughly corresponding to the outer diameter of the compression sleeve). The required compression die is selected in accordance with this code number.

For hexagonal compressions made with hand-operated mechanical compression tools, browned dies (black) are to be used for copper, bronze and steel compression joints, whereas aluminium compression joints require electro-galvanized dies (white).

For hydraulic compression tools there is no differentiation of dies for different metals.
The compression sleeve non-tension and full-tension of aluminium compression joints and of full-tension copper compression joints are prefilled with compression compound which must not be removed before the compression, neither completely nor in part. Any compression compound escaping during the compression should be wiped off.

Assembly Instructions:

  1. Clean the conductor or cable ends with a wire brush to remove dirt and oxidation.
  2. Insert conductor or cable ends into the compression sleeve up to the centre.
  3. Before proceeding, make sure that the code number on the compression joint is matched to that on the compression die.
  4. Compression joints are compressed by making the first compression at the centre and working out toward the ends. The number of compressions is marked on the sleeve. It is important to make the specified number of compressions.

Diagram:

t2-6s-2
