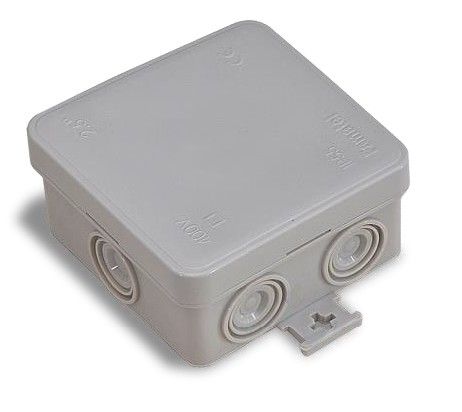

Sealed Box ‘Famatel’ – 3051

Group 103820328 Categories ,
Share on facebook
Share on twitter
Share on linkedin
Share on print
Share on whatsapp

Description

Classification Enclosure:

Type of material: Isolated , Halogen Free
Fixation Place: Wall
Environment: Interior/Exterior
Protection Degree: IP55
Impact Resistance: IK08
Isolated Tension: 400 V
Dielectric Strength: 2.5 kV
Glow Wire: 650 °C
Isolated Rate: 90 °C (Thermic class 90, Y)
Dimensional Stability:
– Temperature: -25 °C / +85 °C
– Humidity: 100% HR
Build Characteristics:
– Clip-On Cover

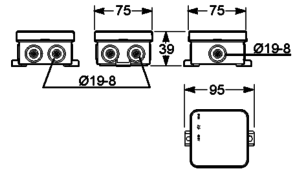

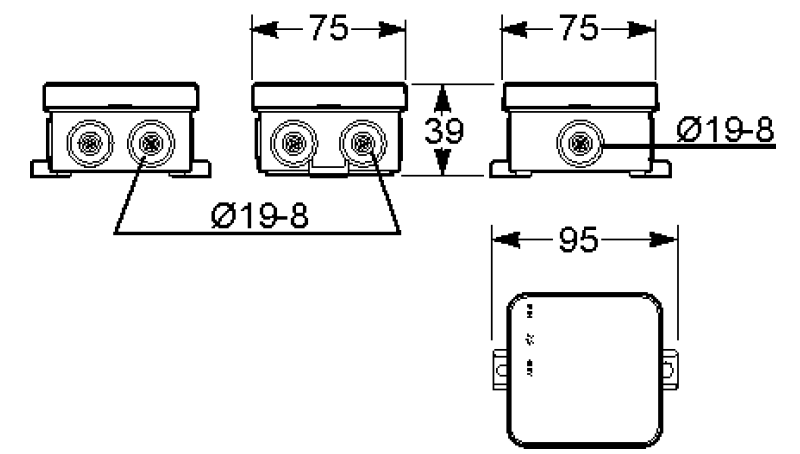

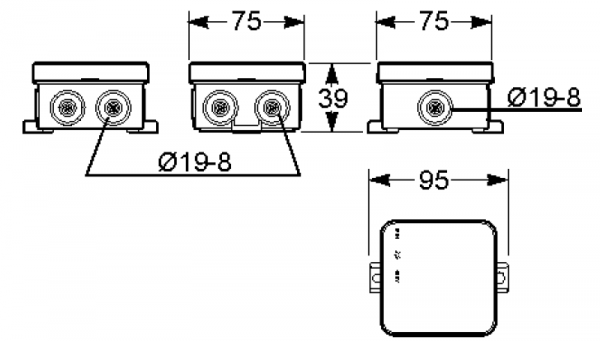

 Inputs: 7 x Ø 19 mm
Standard: EN 60670.22

Sealed Box 'Famatel' 3051
Cat. No.Description
103820328'Famatel' 3051
