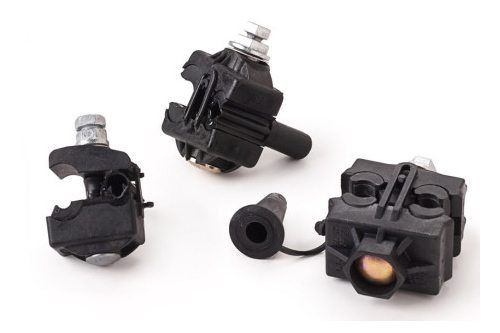

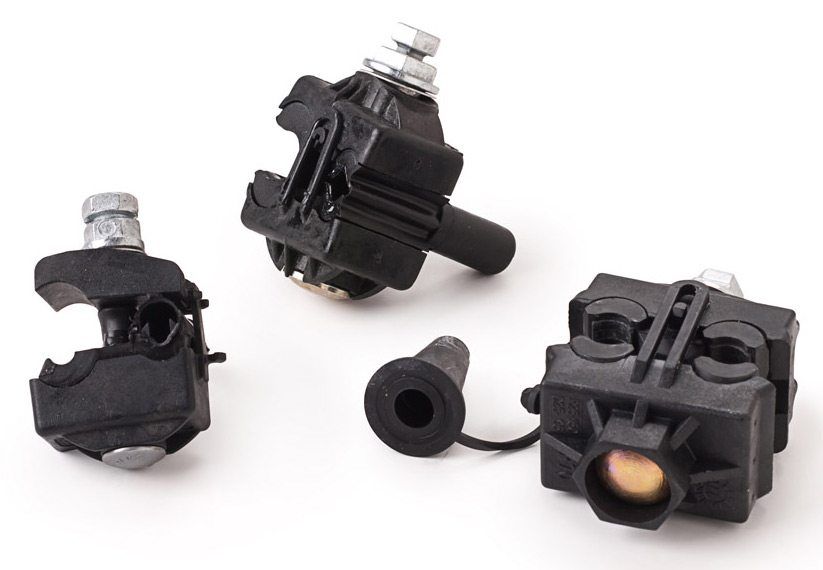

Insulation Piercing Type Connectors Clamping For Network And Lighting

Group 281 Category

HN- 33 S 63, IN COMPLIANCE WITH STANDARDS NF-C 33 O 20

Share on facebook
Share on twitter
Share on linkedin
Share on print
Share on whatsapp

Description

Connections on Aerial Bundled Conductors (A.B.C.)

  1. The bolt is equipped with a second (shear-head) nut.
  2. Low clamping torque for easy and reliable installation even when clamping small diameters.
  3. Possibility of disassembly using a 15 mm wrench.
  4. Installation is clean and easy because no insulating grease is required.
  5. Insulation sleeve insuring 6 KV dielectric resistance when immersed in water.
  6. Installation is made easier because the connector remains naturally in the open position due to the elastic nature of the sleeve.
  7. The insulating end cap which is secured to the connector, increases operator safety.
  8. Tightening screw free of electrical potential, body made of insulated material.



Specifications:

Cat. No. Ref.Connectors Capacity
sq. mm
Dimensions mmWeight 100 Pcs.
Kg.
Main Tapabh
101637604P-46-951.5-10
101637616P-6166-1501.5-16
101637631P-631 6-25/35 16-25 29 39 70
6.8
101637645P-645 16-150 4-25 36
46 72 10.0



Diagram:

6-2
