Pre-Insulated Joints For LV Overhead A.B.C Connection

Group 280_A Category

HN 33-S-65

Share on facebook
Share on twitter
Share on linkedin
Share on print
Share on whatsapp

Description

These pre-insulated sleeves are used for the connection of A.B.C. (Aerial Bundled Conductor).

They are used in installation, repairing or replacement of aerial low tension connections.

Requiring a 140 hexagonal crimping die.

Weight:

25 grams per unit

Ring colors per sectional areas (sq. mm):

4: Ivory    25: Orange    70: White

6: Brown    35: Red    95: Gray

10: Green    50: Yellow    150: Violet

16: Blue    54: Black

Cat. No.Product DescriptionConductor Cross Section sq. mm
101623025Pre-Insulated Joint MJPT25/25
101623035 Pre-Insulated Joint MJPT35/35
101623050Pre-Insulated Joint MJPT50/50
101623054Pre-Insulated Joint MJPT54/54
101623070Pre-Insulated Joint MJPT70/70
101623095Pre-Insulated Joint MJPT95/95
101623096Pre-Insulated Joint MJPT95/95 - Long
101623150Pre-Insulated Joint MJPT150/150

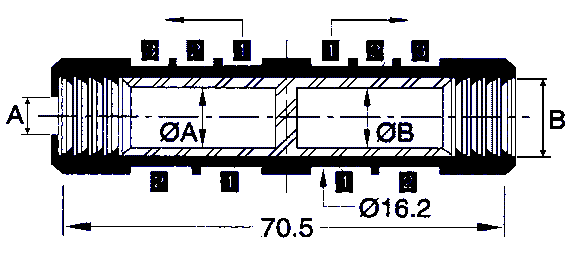

Diagrams

p6-1n
