MV Plastic Cable Clamp - Triple Ø 33mm-46mm

Group 291_101722611 Category
Share on facebook
Share on twitter
Share on linkedin
Share on print
Share on whatsapp

Description

Standards:

According to International Standard IEC:
Attestation of Conformity KMMW No. 2196458.01 Short-Circuit Test: 61914:2015 Clause 9.5.3
Type Test KMMW No. 501937-01/01C Mechanical Test: EN 61914:2010

Material:

Polyamide 66, 30% GLass Fiber Reinforced.

Color:

Black

Tensile strength:

120 N/mm²

Flexural strength:

200 N/mm²

Thermal expansion:

0.02% / 1°C

Thermal limits:

Long term: -40°C – +120°C
Short term: -40°C – +220°C

Fire resistance:

UL 94 – VO
VDE 0304, Part 3, class Ia

Resistance to:

U.V. light, Ozone, Oils, Fuels, Alkalis

* Available also with screws

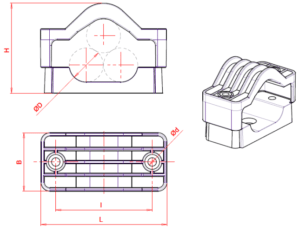

Diagram:

**Press the picture to enlarge the diagram

Cat. No. Cable Out Side
Diameter (D)
Ø mm
No. of CablesDimensions
(mm)
Weight
(kg.)
L B I Ød H
10172261133-46 31707913011.590-1220.430
