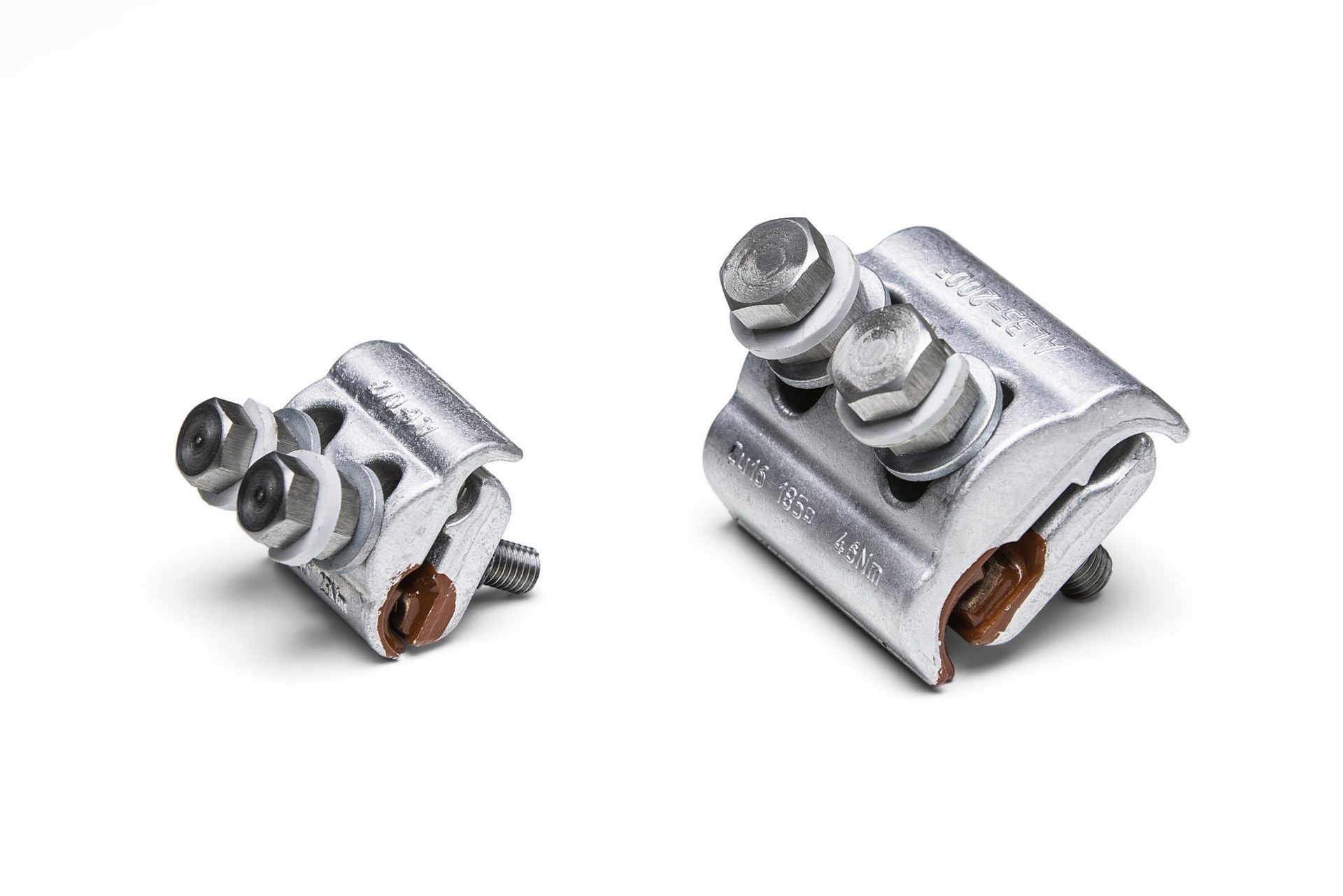

Al/Cu Bimetallic PG Clamp with Shear Head-Off Bolts According to DIN Standard

Group 219_C Category

DIN 48201, DIN 48204

Share on facebook
Share on twitter
Share on linkedin
Share on print
Share on whatsapp

Description

For connection of Al conductors according to DIN 48201 & ACSR conductors according to DIN 48204 with copper tap-off conductors according to DIN 48201

Material

Body:

High strength, corrosion-resistant, aluminium alloy (AlMgSi1/Al6082).

Bolts:

Steel 8.8, DIN 933, hot-dip galvanised.

Nuts:

Steel 8, DIN 934 hot-dip galvanised pressed into lower part

Conical Washers:

Steel, DIN 6796 corrosion-protected.

Minimum torque moments:
M8 : 23Nm

Cat. No.Conductor Cross Section sq. mmConductor Diameter
ֳ˜ mm
Dimension mm. BoltsWeight
100 Pcs.
Kg.
AlACSRCuAlCuLBD
10133170616-706-501xM8x40
10133170735-12010-501xM8x45
10133171016-706-502xM8x40
10133171135-12010-502xM8x45
10133171225-15010-952xM8x45
10133172635-20035-1852xM10x60
