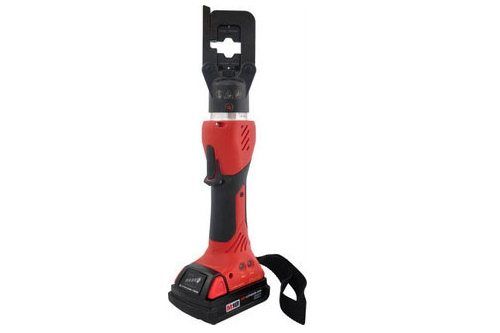

Stilo50 - Battery Operated Hydraulic Crimping Tool - 50 kN 'intercable'

Group 245_101404174 Category
Share on facebook
Share on twitter
Share on linkedin
Share on print
Share on whatsapp

Description

Technical Characteristics:

  • Very light and compact structure
  • Ergonomic 2-Component handle for one-handed fatigue-proof working
  • Rotation 270° allows easy operation also in confined spaces
  • Electronic crimping cycle control and monitoring
  • Manual return
  • Mini USB-port:
    1. Output of all cycles (compression curves) and fault messages
    2. Maintenance control
    3. Software inclusive
  • Battery state control is readable directly on the battery

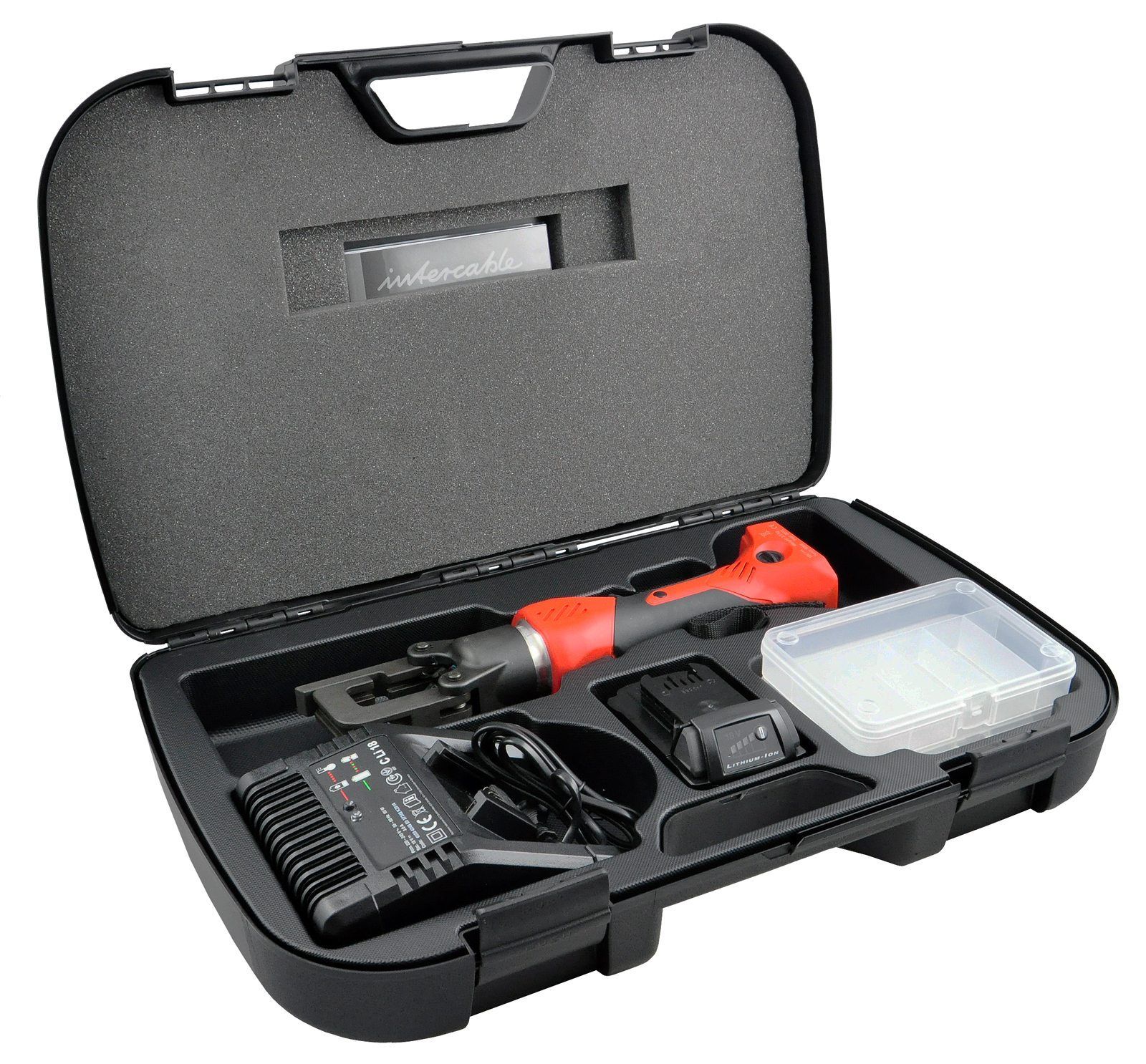

Set Equipment:

  • Battery-operated hydraulic crimping tool 50kN
  • Battery Li-Ion 18V 1.5Ah (RA12)
  • Battery charger
  • USB-cable and Software (CD)
  • Comfortable sturdy nylon case for the device an crimping dies

Cat. No.DescriptionOrder No.DimensionsWeight
101404174Set Crimping ToolStilo50450 x 360 x140 mm4,5 kg
Compression section max.Compression forceOperating PressureMax. strokeBattery voltageBattery capacityTool weightTool Dimensions
240 mmֲ²50 kN550 bar (64MPa)16 mm18V1,5 Ah2,3 kg380x123x80mm
Cat. No.Dies Set mmֲ²Dies Code
101404249 65
101404250106
101404251168
1014042522510
1014042533512
101404254 5014
101404255 7016
1014042569518
10140425712020
101404258 15022
101404259 18525
