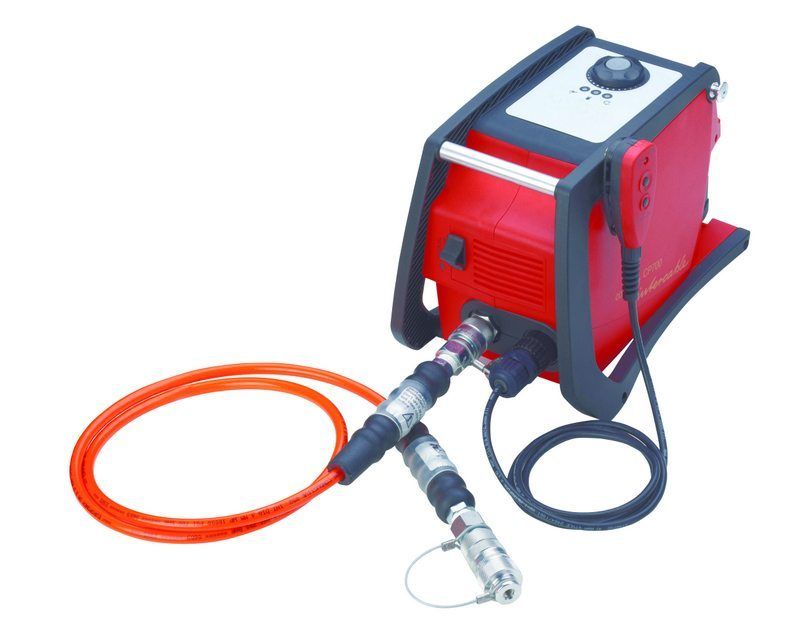

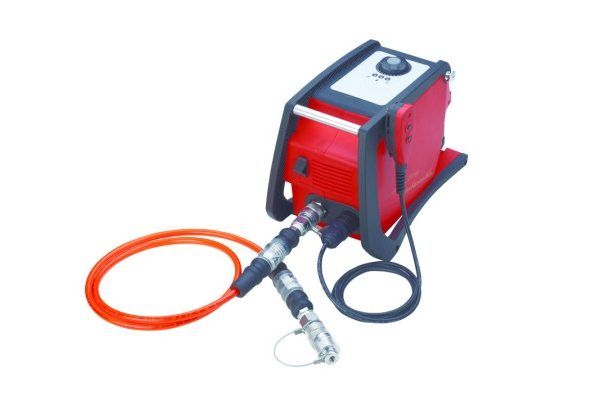

CP700 Compact Hydraulic Pump with Accumulator 'intercable'

Group 256_101405950 Category
Share on facebook
Share on twitter
Share on linkedin
Share on print
Share on whatsapp

Description

Designed to operate hydraulic tools up to 700bar (70MPa).

Technical Characteristics:

  • Light, compact and robust structure
  • Ergonomic design for right or left handers
  • Quick make snap lock connection and non detachable dust cap
  • Possibility to carry the special transportation bag with additional (optional) pockets, with a shoulder strap or attached to a belt (optional)s
  • Manual or automatic return
  • Rapid return of piston, thanks to high return capacity
  • Free preasure calibration (only mod.CP700)
  • Freely programmable pump (only mod. CP700)
  • Preinstalled standard programs for cutting and crimping
  • Maintenance program (only mod. CP700)
  • Possibility to setting up maintenance times (only mod.CP700)
  • Electronic sensor pressure control
  • High performance lithium ion accumulator
  • Charge indicator on the accumulator
  • Double piston technology for rapid high pressure feed
  • Capacity within the range of low pressures <100 bar: 1.2 lit./min
  • Capacity within the range of pressures up to 700 bar: 0.2 lit./min
  • Operating pressure :…….700 bar (70MPa)
  • Power:………………………..200 W
  • Accumulator voltage:……18,0 V DC
  • Accumulator capacity:….3,0 Ah
  • Range of use:…………….-20°C/+55°C (integrated cooling system)
  • Remote control (1.5m) two buttons and LED indicator
  • Possiblity to attach the remote control unit to the apparatus, belt or shoulder strap with a clamp support, on buttons (∅ 18.7 mm) through a magnet on flat and rounded surfaces
  • Anti-scratch and shock resistant display protection (only mod. CP700)
  • current and required pressure visible on display (only mod. CP700)
  • Error indication
  • Possibility of reading the curves on the pump (only mod. CP700) and on the PC
  • Possibility of reading all the cycles and error indications by USB
  • Including software
  • Tool dimentions: 290X190X205 mm
  • Tool weight: 4.5 kg

Set Equipment:

  • Compact Hydraulic Pump
  • Battery: Li-Ion 18V 3,0 Ah – RA11
  • Battery Charger – LG8
  • Flexible high pressure hose – length 1,5 m
  • Remote Control (1,5 m)
  • Carrying shoulder strap with shoulder pads
  • USB cable
  • Comfortable sturd nylon bag

DescriptionCat. No.DimensionsWeight
Set: Hydraulic pump101405950480X250X2507.7 kg
Cat. No.Dice ModelDice SetDice Code
101405955PP230Cu25mm210
101405956PP230Al16-25mm2/Cu3512
101405957PP230Al35mm2/Cu5014
101405958PP230Al50mm2/Cu7016
101405959PP230Al70mm2/Cu9518
101405960PP230Cu120mm220
101405961PP230Al95-120mm2/Cu15022
101405962PP230Al150mm2/Cu18525
101405964PP230Al185mm2/Cu24028
101405965PP230Al240mm2/Cu30032
101405966PP230Al400mm2/Cu40038
101405967PP230Cu500mm242
101405968PP230Al500mm2/Cu63044
101405971PP520Al500mm2/Cu63044
101405973PP520Cu500mm242
101405975PP520Al400mm2/Cu40038
101405977PP520Al240mm2/Cu30032
