AP60-2 Battery Operated Hydraulic Crimping Tool - 60 kN 'intercable'

Group 244_101404171 Category

Designed to crimp terminals and connectors up to a maximum of 300 mm² cable cross sections

Share on facebook
Share on twitter
Share on linkedin
Share on print
Share on whatsapp

Description

Technical Characteristics:

• Crimping head with snap closure, rotates 360°

• High speed feed with double hydraulic cylinder

• Light and compact structure

• Variable speed for positioning of the tool

• In each position manual return possible

• Pressure release button with single handed operations (on both sides,
for left- and right handed operators)

• Portable, features carry belt and shoulder strap

• Ergonomic 2-component handle with weight balance for easy and safe
operation

• LED for illuminating the work area

• Insulating and shock persistent plastic housing

• High performance LI-ION Battery 18V with high capacity and short
charging time

• Fuel gauge displays remaining charge

• Up to 2x more run time

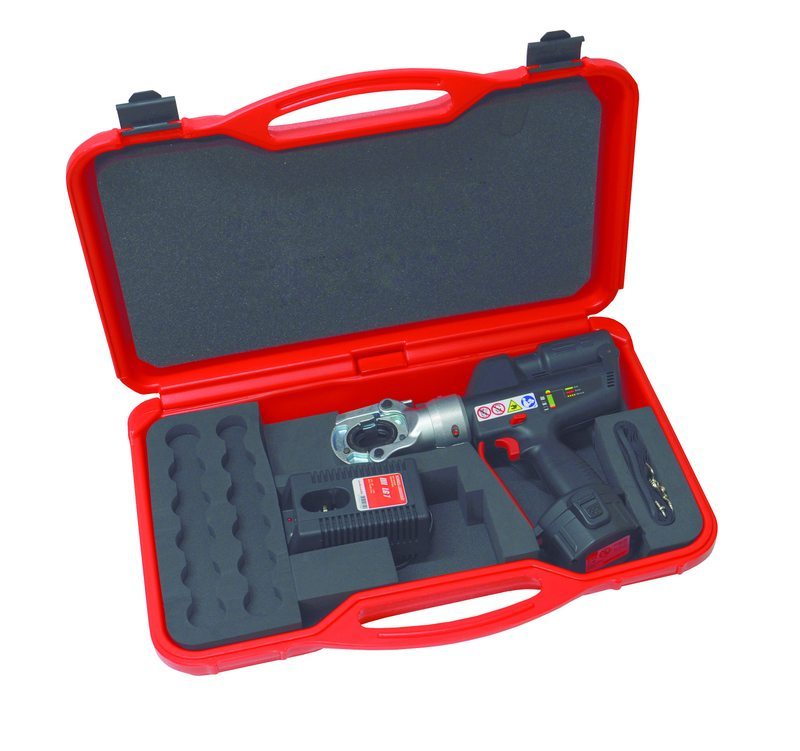

Set Equipment:

  • Battery-operated hydraulic crimping tool
  • 18V/3,0Ah Li-Ion – battery
  • Battery charger (LG8)
  • Plastic case
  • Plastic case for crimping dies
  • Shoulder strap

Compression section max.300 mm²
Compression force60 kN
Operating pressure

700 bar (70MPa)
Max. Stroke

17 mm
Battery voltage

18 V
Battery capacity

300 Ah
Tool weight

4,4 kg
Tool dimensions

334 x 331 x 75 mm
Set crimping tool
Dimensions

Weight
575 x 460 x 112 mm

7,8 kg
Cat. No.Order No.Description
101404171AP60-2Battery Operated Hydraulic Crimping Tool
Dies Set
Cat. no.Dies set (mm²)Dies code
101404210Cu6
5
101404211Cu106
101404213Cu168
101404215Cu2510
101404217Al16-25/Cu3512
101404219Al35/Cu5014
101404221Al50/Cu7016
101404223Al70/Cu9518
101404225Cu12020
101404227Al95-120/Cu15022
101404229Al150/Cu18525
101404231Al185/Cu24028
101404233Al240/Cu30032
101404235Al30034
