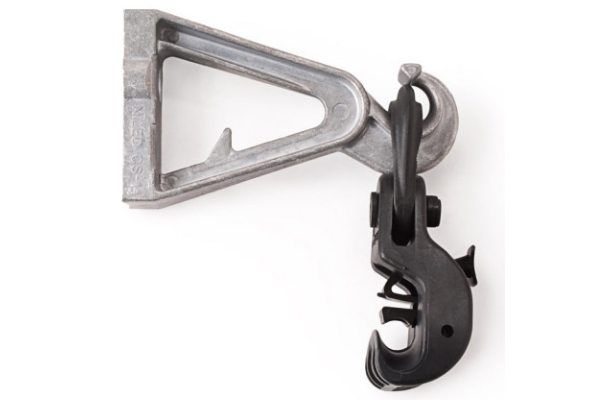

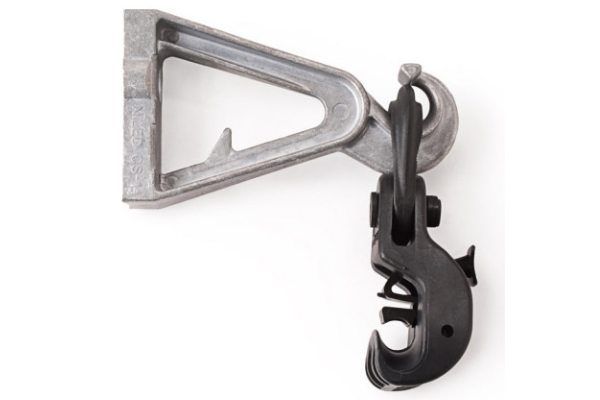

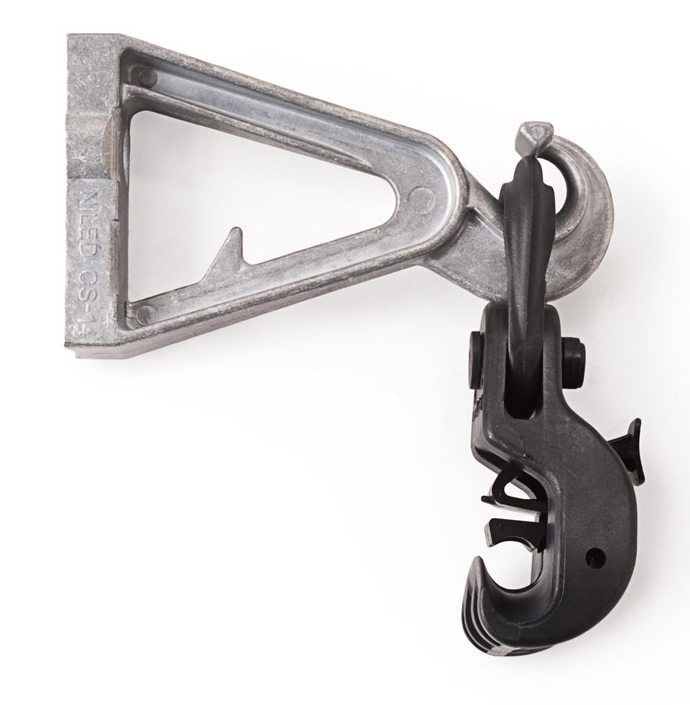

Suspension Assembly ES-2000 ES-1500

Group 280_101625003 Category

COMPLIES WITH STANDARD HN 33 S 67

Share on facebook
Share on twitter
Share on linkedin
Share on print
Share on whatsapp

Description

Device for Networks Stretched on Poles:

In alignment or angle, with or without difference of level.

Bracket CS 1500 / CS 2000

Single piece, made of aluminium alloy with high mechanical resistance.
Lug avoiding re-opening of the clamp.
Bracket with fuse in case of overload.
Fixing by 14 or 16 mm diameter bolts, or by straps.

Movable Link LM

Allows transversal and longitudinal movement.

Suspensions Clamps PS

Opening on pole side (according to technical standard).
Locking and clamping of the neutral messenger without tool.
Easy installation.
The weight of the cable locks the clamp (security).

The movable link and the suspension clamp are made
of insulating material of high resistance to atmospheric agents.

Cat. No.Ref.Capacity
(mm²)
Dimensions
(mm)
Rupture
(kg. )
Weight
(kg.)
dha
101625003 Suspension Assembly ES-1500 54-7054.6-70 157 130 80 >1500 0.450
101625004 Suspension Assembly ES1500.E 54-9580-95 157 130 50 >2000 0.440

Diagram:

6.4.31 6.4.32
