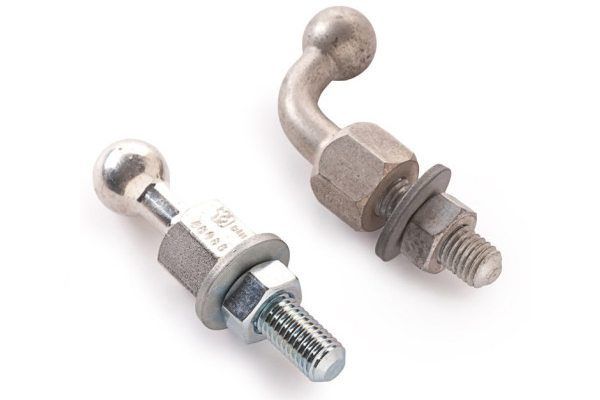

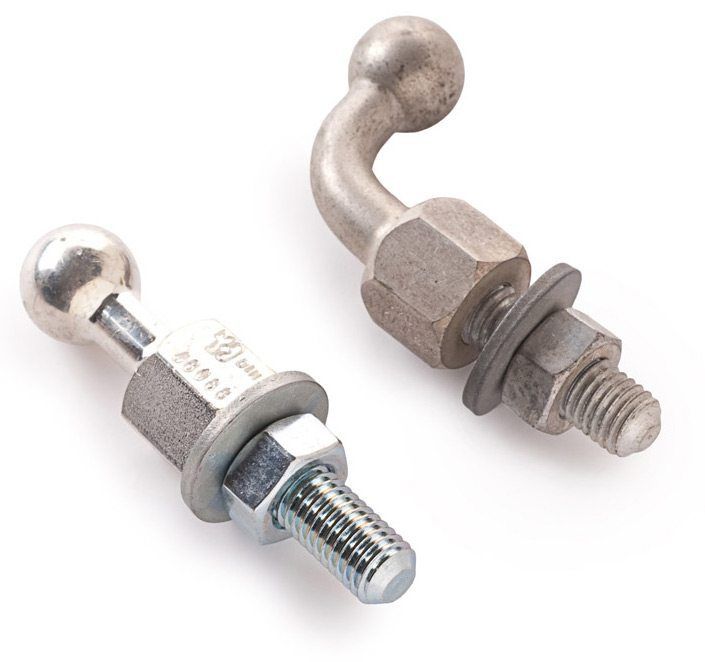

Phase Earthing Ball Connection According To DIN 48088

Share on facebook
Share on twitter
Share on linkedin
Share on print
Share on whatsapp

Description

Components for Earthing.

Material

Body:

Copper alloy (CuNiSi) electro-tin-plated
20 micron.

Bolt:

Steel, 8.8 hot-dip galvanized.

Conical washer:

Steel, DIN 6796 corrosion protected.

Nut:

Steel 8, DIN 934 hot-dip galvanized.

Cat. No.For Maximum Cable
Cross Section
sq. mm
Maximum Permissible
Short Circuit Current
lk 1 sec in A
Threaded Pin Key
SW
Weight
Kg.
Ø Lmm
10149013222mm M12 - Long
10149013422mm M8
10149013522mm M10
101490136 95 18500 22mm M12 35 22 0.16
101490137*
120 23500 22mm M16 45 27 0.31
10149013824mm M16
10149013922mm M12 45°
