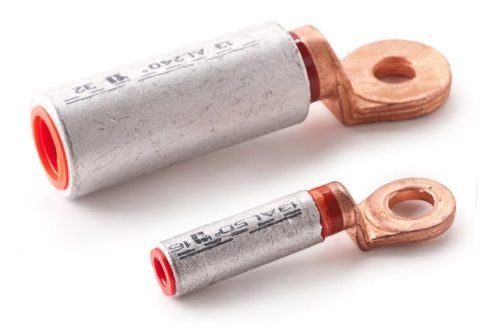

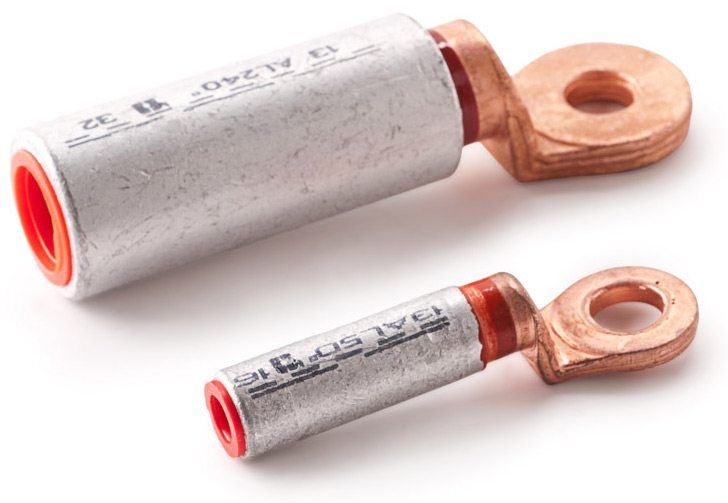

Aluminium/Copper Compression Cable Lug, DIN Standard

Share on facebook
Share on twitter
Share on linkedin
Share on print
Share on whatsapp


For the connection of aluminium conductors to copper bus bars.

A – Other hole sizes, for each cable lug size, are available on demand.
B – For 90° cable lugs, please change first three Cat. No. to 316…
C – For 2 hole cable lug, please change first three Cat. No. to 326… (distance between holes according to order).

Cat. No. Ref. Conductor
Cross Section
sq. mm
ֳ˜ mm
Die Code No. Dimensions mm. No. of
d1 d2
b L2 L1
101306251 25x10 25 6.3 12 6.5 10.7 20 49 75 05-Feb
10130625935x1335 7.5 14 8.0 13.0 25 49 `77.5 05-Feb
101306262 50x13 50 9.0 16 9.0 13.0 25 49 77.5 05-Feb
101306266 70x13 70 10.5 18 11.0 13.0 25 49 77.5 05-Feb
101306269 95x13 95 12.5 22 12.5 13.0 25 49 77.5 5-2
101306272 120x13 120 14.0 22 13.7 13.0 30 66 100 06-Mar
101306275 150x13150 15.8 25 15.5 13.0 30 66 100 06-Mar
101306278 185x13185 17.5 28 17 13.0 35 66 97.5 6-3
101306281 240x13240 20.3 32 19.5 13 35 66 97.5 06-Mar

User Instructions:

The compression cable lugs are marked with a code number in front of the logo (roughly corresponding to the outer diameter of the compression sleeve). The required compression die is selected in accordance with this code number.

For hexagonal compressions made with hand-operated mechanical compression tools, browned dies (black) are to be used for copper cable lugs, whereas aluminium cable lugs require electro-galvanized dies (white).

For hydraulic compression tools there is no differentiation of dies for copper or aluminium cable lugs.

The compression sleeve of aluminium cable lugs is pre-filled with compression compound which must not be removed before the compression, neither completely nor in part. Any compression compound escaping during the compression should be wiped off.

Copper cable lugs are not pre-filled with compression compound.

Assembly Instructions

  1. Clean the conductor or cable ends with a wire brush to remove dirt and oxidation.
  2. Insert conductor or cable ends into the compression sleeve up to the stop.
  3. Before proceeding, make sure that the code number on the cable lug matches that on the compression die.
  4. Cable lugs are compressed by starting from the plate end and working out toward the sleeve end. The number of compressions is marked on the sleeve. It is important to make the specified number of compressions.
