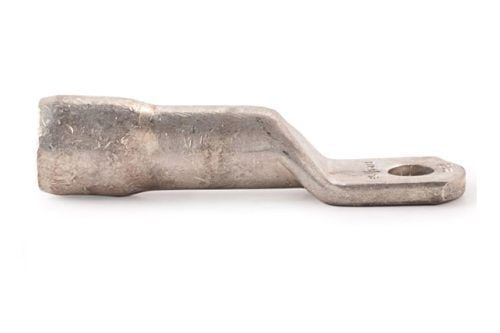

Copper Compression Cable Lug For Flexible Cables, DIN Standard

DIN 48201, DIN 57295, Standard type

Share on facebook
Share on twitter
Share on linkedin
Share on print
Share on whatsapp

Description

For circular stranded copper conductors to DIN 48201 and circular stranded/sector-shaped stranded copper conductors to DIN VDE 0295

Material

E-Cu, DIN 40500/2, F-25

Surface:

Tin-plated

Cat. No.Conductor Cross
Section sq. mm.
Die CodeDimensions mm.Weight
100 pcs. Kg's
l a1 a b d1 d3 d4 e s
101350252 25X1312 56 13 37 21 8.2 12.5 10.5 1.0 3.5 4.3
101350259 35X1314 67 16 43 22 10.0 14.5 13.4 1.0 4.0 6.8
101350262 50X1316 70 18 47 24 11.5 16.5 14.8
2.0 5.0 8.2
101350266 70X1318 87 21 59 28 13.5 19.0 17.5 2.0 5.0 12.7
101350269 95X13 22 102 25 65 34 17.0 23.5 21.2 2.0 6.0 21.5
101350272 120X13 25 107 29 70 37 19.0 25.5 24.3 2.0 6.0
101350275 150X1328 113 33 74 42 21.5 29.0 27.5 2.0 7.0

User Instructions:

The compression cable lugs are marked with a code number in front of the logo (roughly corresponding to the outer diameter of the compression sleeve). The required compression die is selected in accordance with this code number.

For hexagonal compressions made with hand-operated mechanical compression tools, browned dies (black) are to be used for copper cable lugs, whereas aluminium cable lugs require electro-galvanized dies (white).

For hydraulic compression tools there is no differentiation of dies for copper or aluminium cable lugs.

The compression sleeve of aluminium cable lugs is pre-filled with compression compound which must not be removed before the compression, neither completely nor in part. Any compression compound escaping during the compression should be wiped off.

Copper cable lugs are not pre-filled with compression compound.

Assembly Instructions

  1. Clean the conductor or cable ends with a wire brush to remove dirt and oxidation.
  2. Insert conductor or cable ends into the compression sleeve up to the stop.
  3. Before proceeding, make sure that the code number on the cable lug matches that on the compression die.
  4. Cable lugs are compressed by starting from the plate end and working out toward the sleeve end. The number of compressions is marked on the sleeve. It is important to make the specified number of compressions.

Mezer_11-11_11-29-13

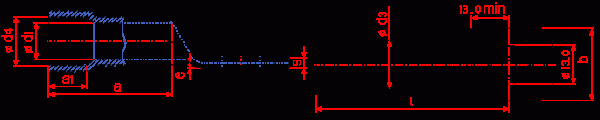

Diagrams

p3-10
